This is a full catalog of Cesaroni motors, with associating thrust curves and burn data
The data are courtesy of Mark Koelsch / thrustcurve.org and represent his collection as of 12/15/2012. I limit my contribution to organizing the data by diameter and case, and colorizing the graphs.
I generate this catalog from Mark's .eng files using a custom Python script. If you find inaccuracies in my compilation, or have feedback on the presentation, please share them in this thread on The Rocketry Forum.
Ari Krupnik.
| Pro24 | ||||||||||||

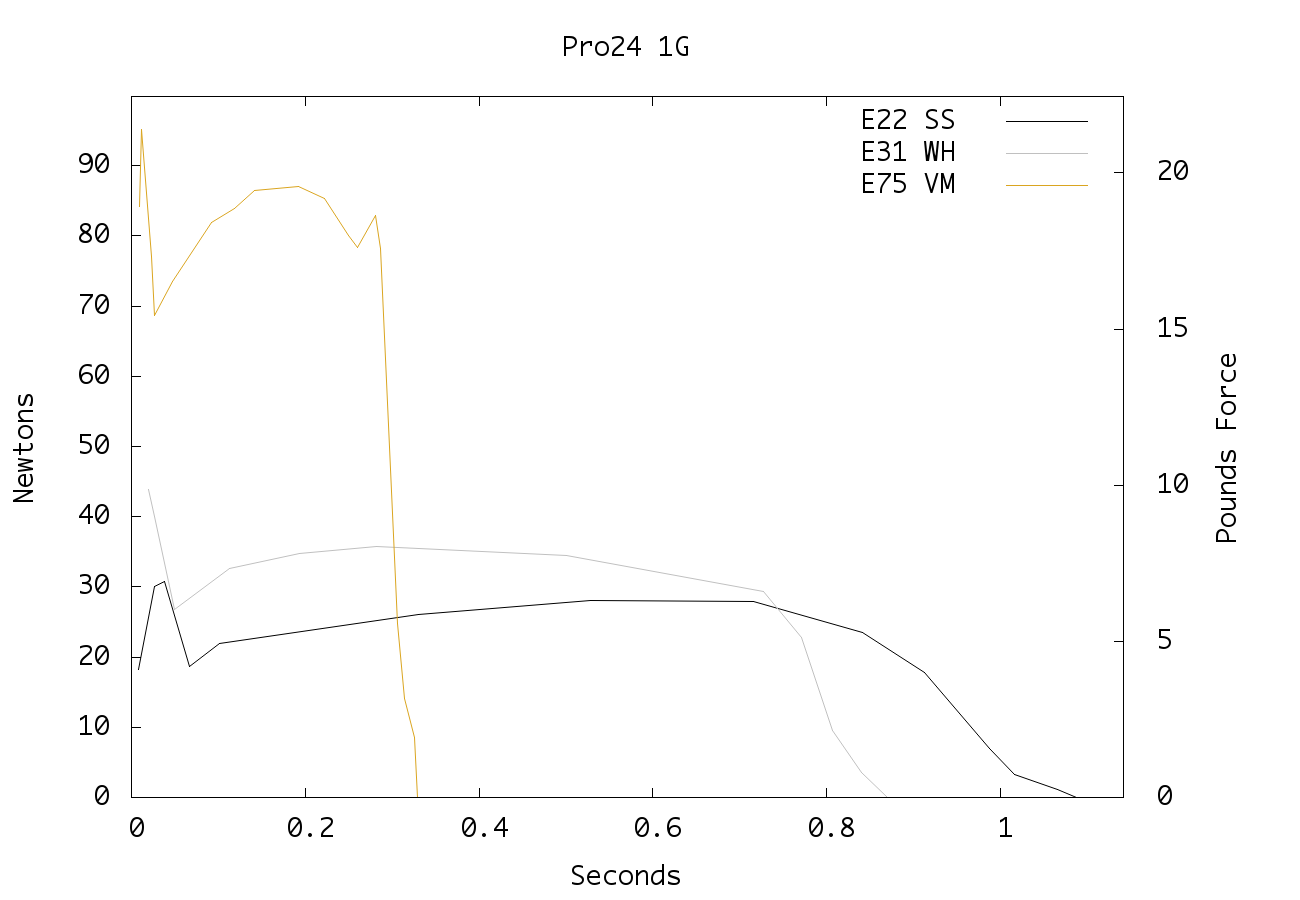

| Pro24 1G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E22-SS | Smoky Sam | 30.8N | 6.9lbf | 1.1s | 56.5g | 2.0oz | 20.3g | 0.7oz | 69mm | 2.72" | 4s-13s | |
| E31-WH | White | 43.8N | 9.9lbf | 0.9s | 52.0g | 1.8oz | 16.9g | 0.6oz | 69mm | 2.72" | 6s-15s | |
| E75-VM | Vmax | 95.1N | 21.4lbf | 0.3s | 52.0g | 1.8oz | 16.0g | 0.6oz | 69mm | 2.72" | 8s-17s | |

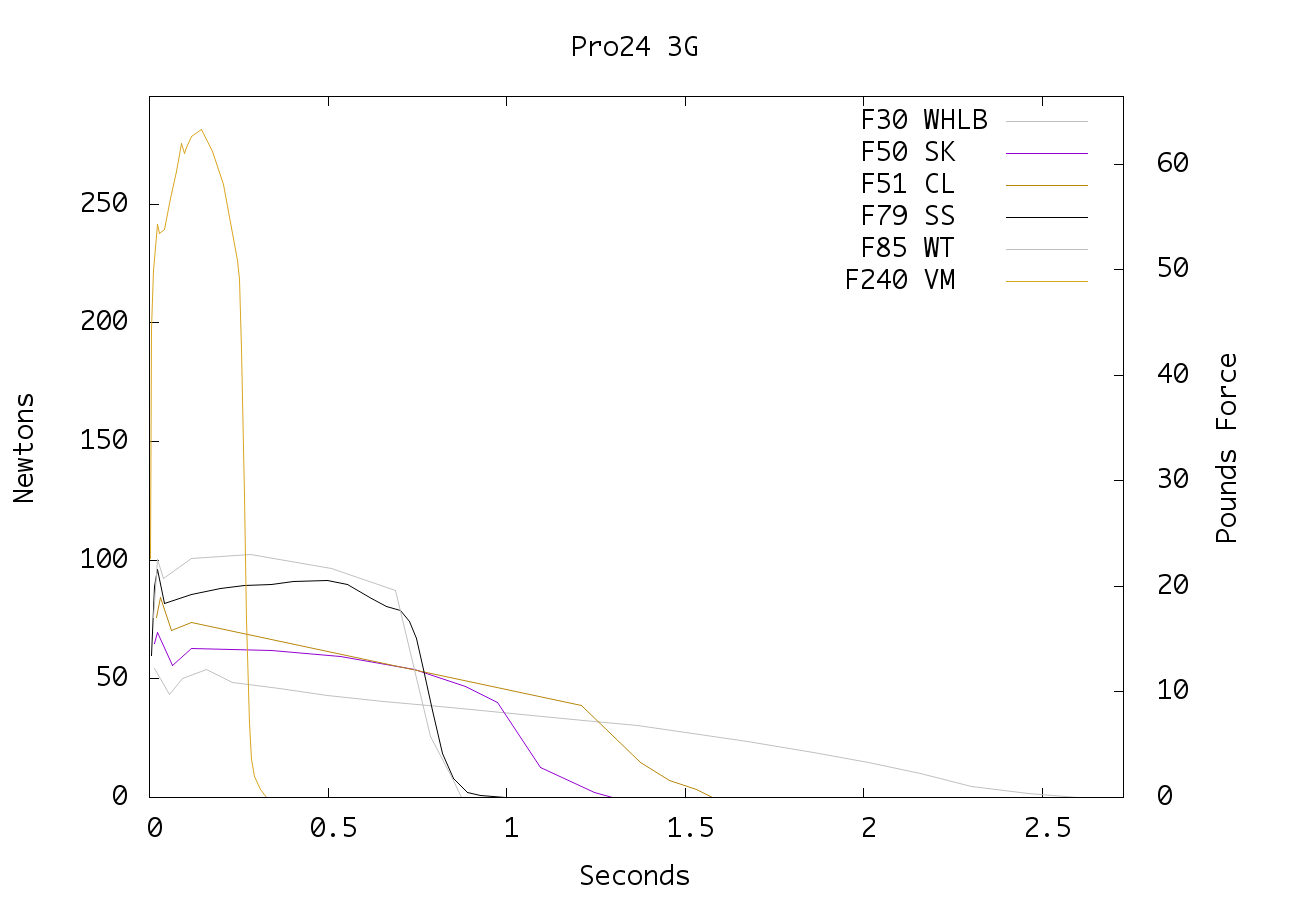

| Pro24 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| F30-WHLB | White Longburn | 54.2N | 12.2lbf | 2.6s | 102.2g | 3.6oz | 40.0g | 1.4oz | 133mm | 5.24" | 2s-7s | |
| F50-SK | Skidmark | 69.5N | 15.6lbf | 1.3s | 93.9g | 3.3oz | 38.2g | 1.3oz | 133mm | 5.24" | 4s-13s | |
| F51-CL | Classic | 84.1N | 18.9lbf | 1.6s | 95.0g | 3.4oz | 40.0g | 1.4oz | 133mm | 5.24" | 5s-12s | |
| F79-SS | Smoky Sam | 96.3N | 21.6lbf | 1.0s | 107.5g | 3.8oz | 40.1g | 1.4oz | 133mm | 5.24" | 4s-13s | |
| F85-WT | White Thunder | 102.4N | 23.0lbf | 0.9s | 96.0g | 3.4oz | 42.0g | 1.5oz | 133mm | 5.24" | 6s-15s | |
| F240-VM | Vmax | 281.4N | 63.3lbf | 0.3s | 91.8g | 3.2oz | 30.3g | 1.1oz | 133mm | 5.24" | 7s-15s | |

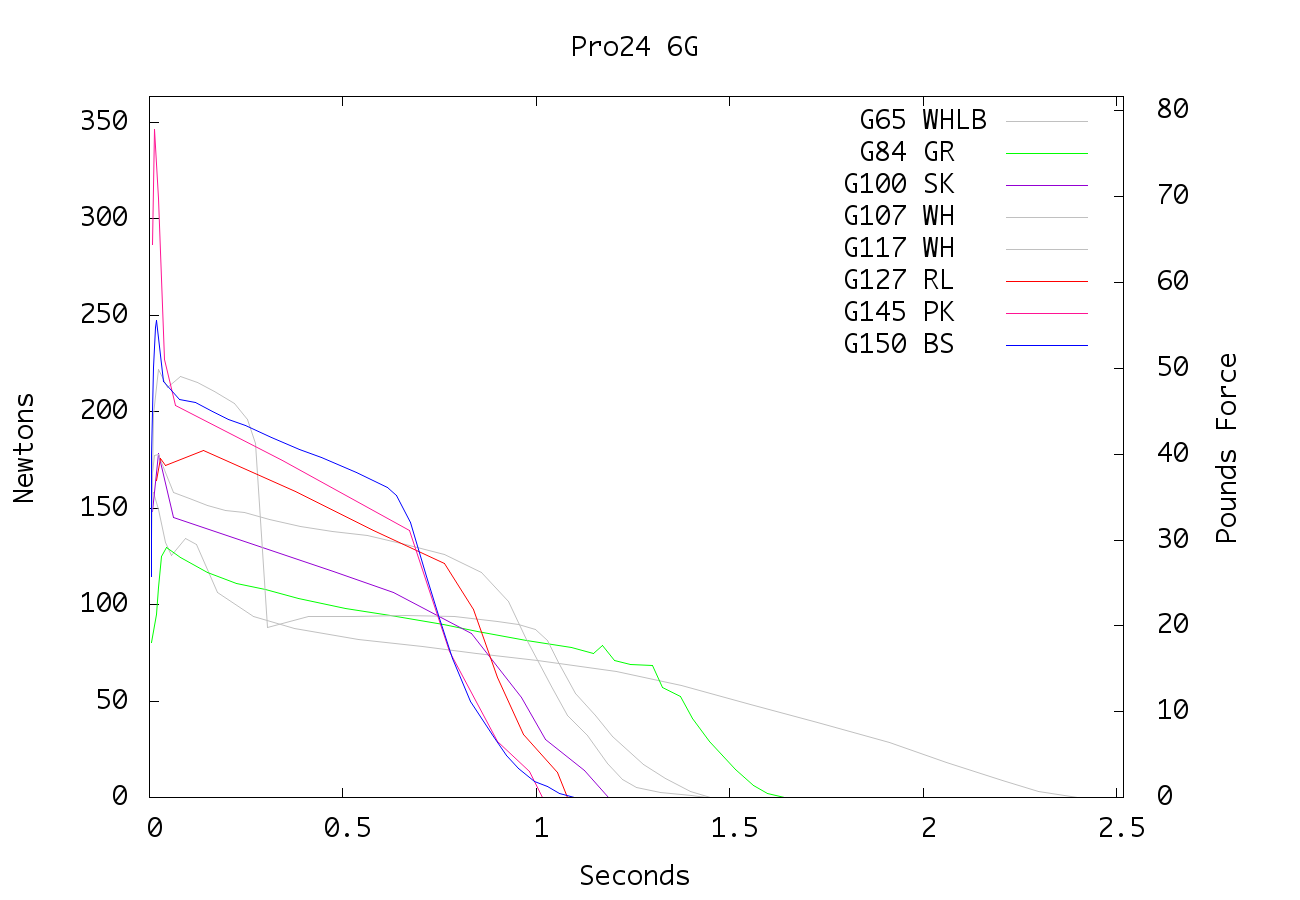

| Pro24 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| G65-WHLB | White Longburn | 157.9N | 35.5lbf | 2.4s | 174.0g | 6.1oz | 80.0g | 2.8oz | 228mm | 8.98" | 3s-8s | |
| G84-GR | Green | 129.8N | 29.2lbf | 1.6s | 172.0g | 6.1oz | 77.3g | 2.7oz | 228mm | 8.98" | 2s-10s | |
| G100-SK | Skidmark | 178.2N | 40.1lbf | 1.2s | 159.0g | 5.6oz | 73.0g | 2.6oz | 228mm | 8.98" | 5s-14s | |
| G107-WH | White | 221.8N | 49.9lbf | 1.5s | 169.8g | 6.0oz | 75.7g | 2.7oz | 228mm | 8.98" | 3s-12s | |
| G117-WH | White | 177.9N | 40.0lbf | 1.4s | 172.5g | 6.1oz | 79.1g | 2.8oz | 228mm | 8.98" | 4s-11s | |
| G127-RL | Red Lightning | 179.8N | 40.4lbf | 1.1s | 166.0g | 5.9oz | 81.0g | 2.9oz | 228mm | 8.98" | 5s-14s | |
| G145-PK | Pink | 346.0N | 77.8lbf | 1.0s | 161.9g | 5.7oz | 77.2g | 2.7oz | 228mm | 8.98" | 6s-15s | |
| G150-BS | Blue Streak | 247.0N | 55.5lbf | 1.1s | 159.9g | 5.6oz | 65.9g | 2.3oz | 228mm | 8.98" | 4s-13s | |
| Pro29 | ||||||||||||

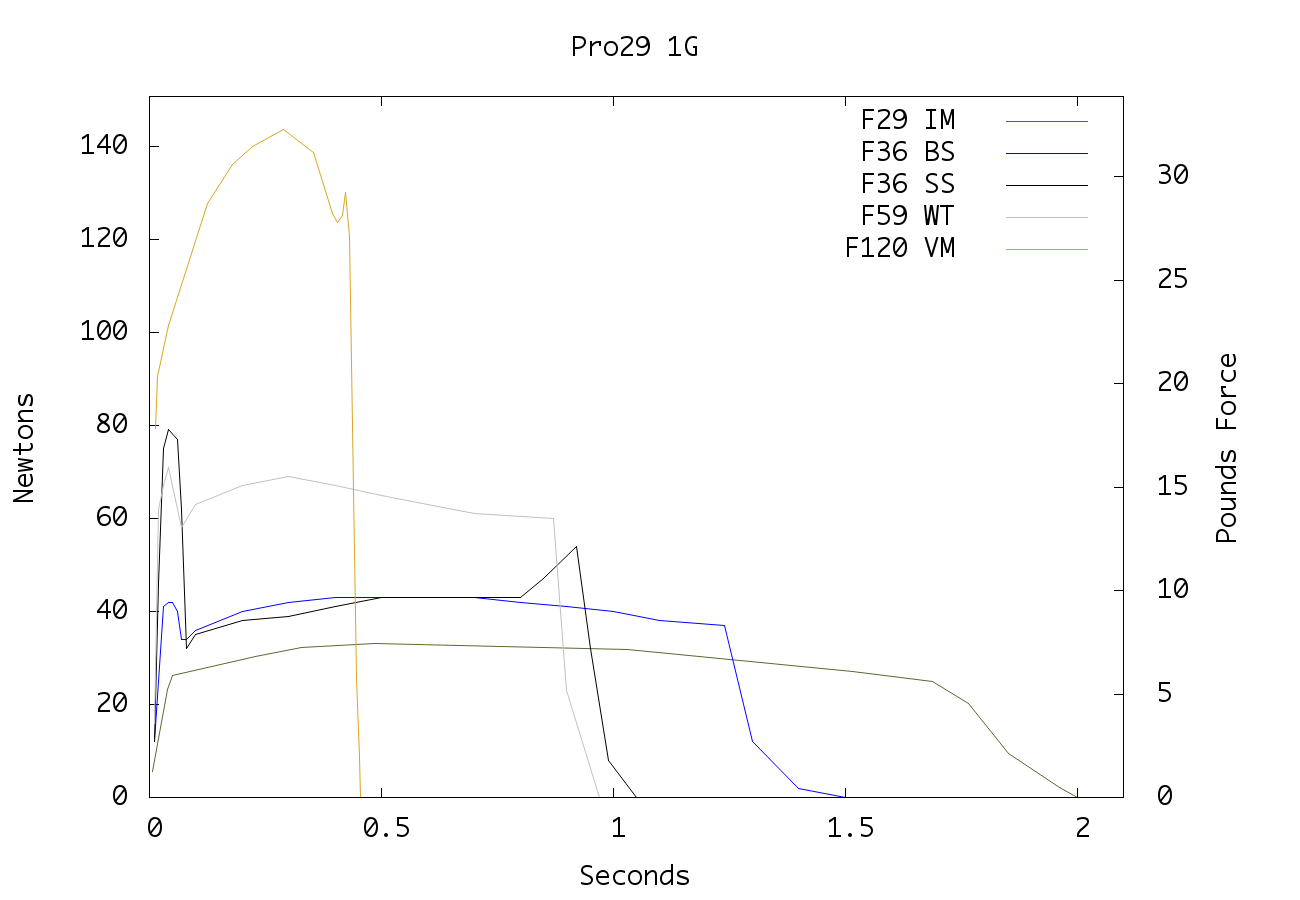

| Pro29 1G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| F29-IM | Imax | 33.2N | 7.5lbf | 2.0s | 105.8g | 3.7oz | 37.6g | 1.3oz | 98mm | 3.86" | 3s-12s | |
| F36-BS | Blue Streak | 43.0N | 9.7lbf | 1.5s | 101.0g | 3.6oz | 32.0g | 1.1oz | 98mm | 3.86" | 5s-14s | |
| F36-SS | Smoky Sam | 79.0N | 17.8lbf | 1.1s | 104.0g | 3.7oz | 35.0g | 1.2oz | 98mm | 3.86" | 2s-11s | |
| F59-WT | White Thunder | 71.0N | 16.0lbf | 1.0s | 99.0g | 3.5oz | 31.0g | 1.1oz | 98mm | 3.86" | 3s-12s | |
| F120-VM | Vmax | 143.5N | 32.3lbf | 0.5s | 106.2g | 3.7oz | 31.4g | 1.1oz | 98mm | 3.86" | 5s-14s | |

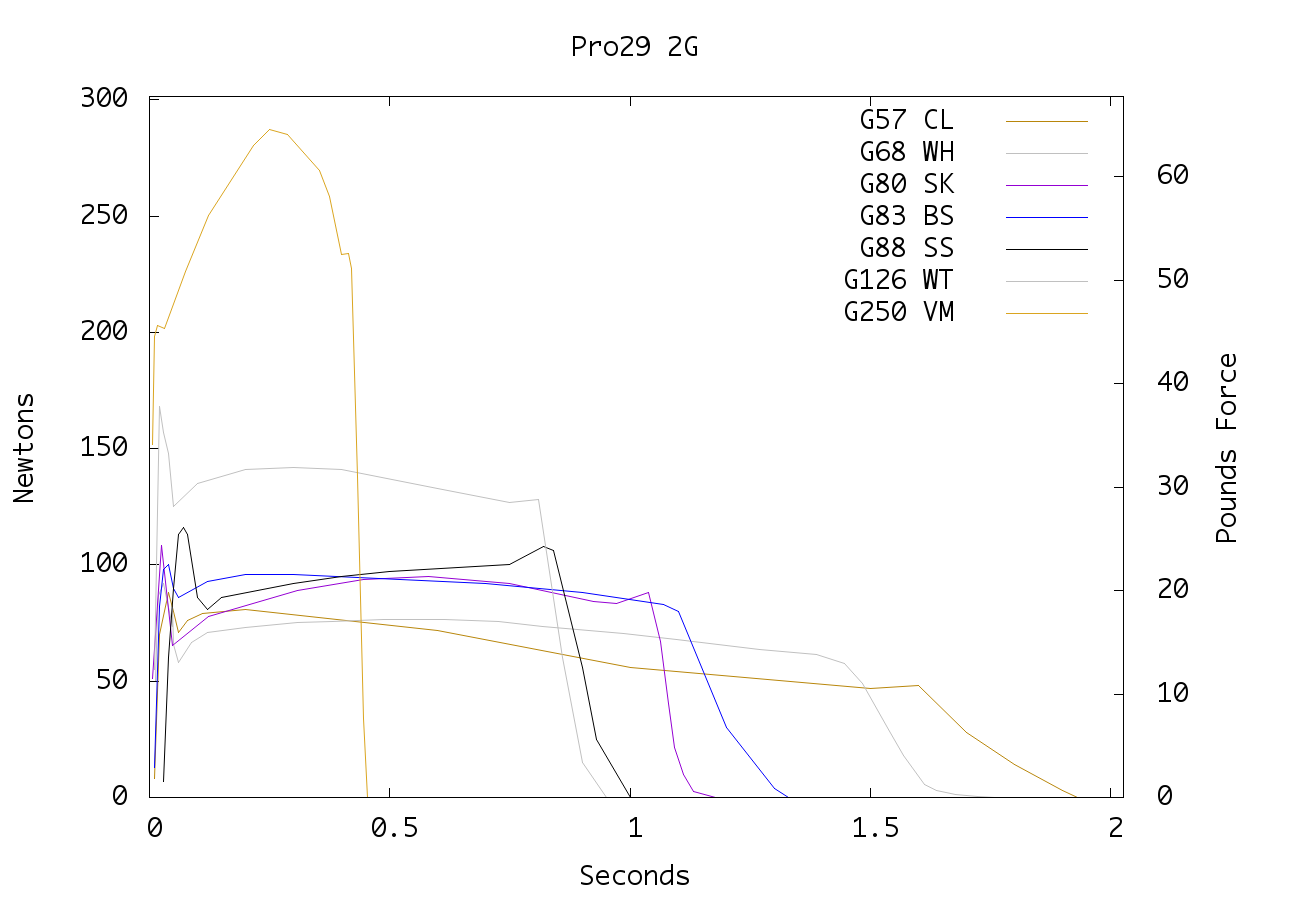

| Pro29 2G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| G57-CL | Classic | 88.0N | 19.8lbf | 1.9s | 146.0g | 5.2oz | 59.0g | 2.1oz | 142mm | 5.59" | 3s-12s | |
| G68-WH | White | 91.8N | 20.6lbf | 1.8s | 155.9g | 5.5oz | 59.9g | 2.1oz | 142mm | 5.59" | 4s-13s | |
| G80-SK | Skidmark | 108.1N | 24.3lbf | 1.2s | 143.2g | 5.1oz | 56.4g | 2.0oz | 142mm | 5.59" | 5s-14s | |
| G83-BS | Blue Streak | 100.0N | 22.5lbf | 1.3s | 145.0g | 5.1oz | 58.0g | 2.0oz | 142mm | 5.59" | 5s-14s | |
| G88-SS | Smoky Sam | 116.0N | 26.1lbf | 1.0s | 152.0g | 5.4oz | 64.0g | 2.3oz | 142mm | 5.59" | 2s-11s | |
| G126-WT | White Thunder | 168.0N | 37.8lbf | 0.9s | 145.0g | 5.1oz | 59.0g | 2.1oz | 142mm | 5.59" | 4s-13s | |
| G250-VM | Vmax | 287.0N | 64.5lbf | 0.5s | 141.3g | 5.0oz | 57.5g | 2.0oz | 142mm | 5.59" | 5s-14s | |

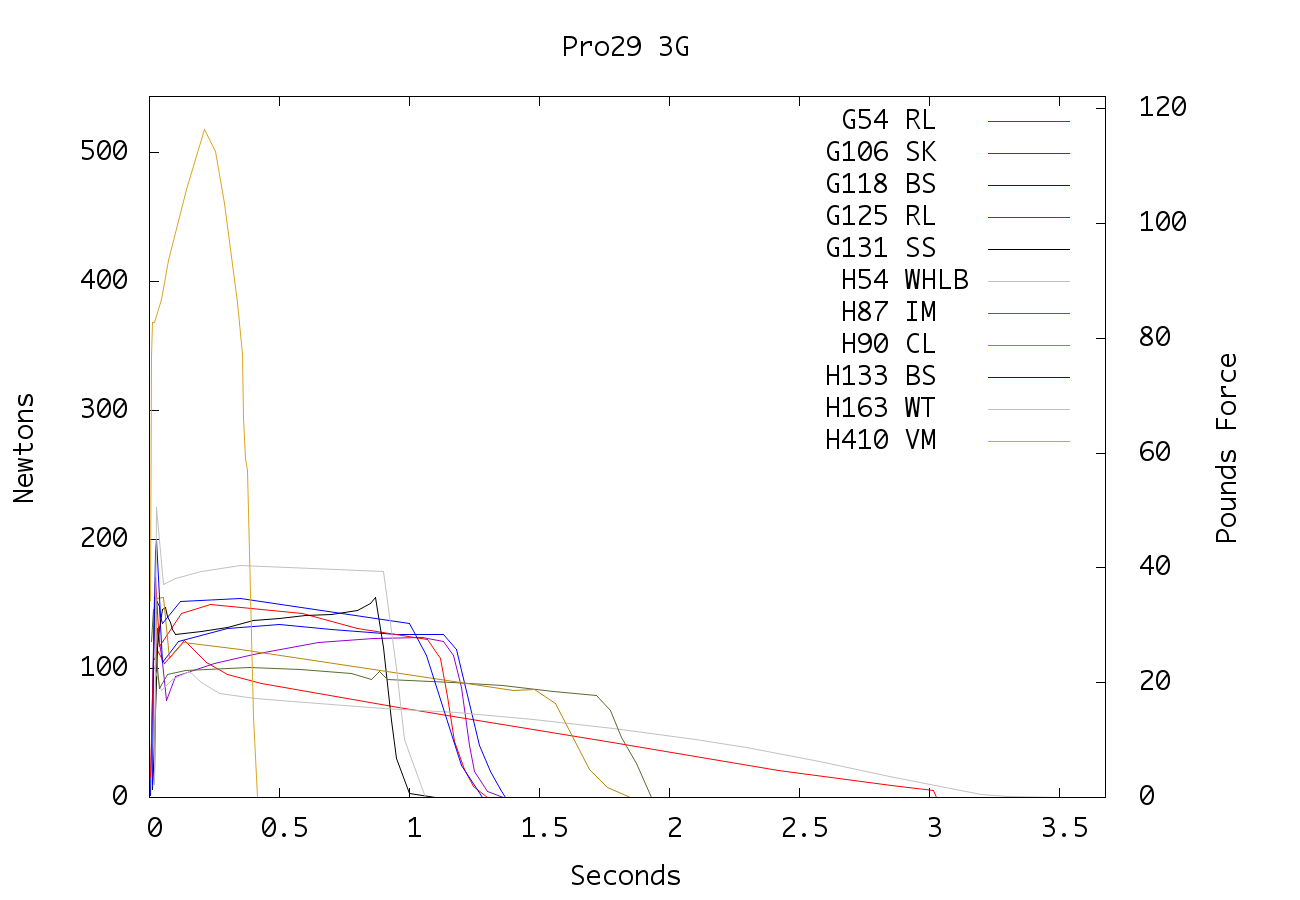

| Pro29 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| G54-RL | Red Lightning | 121.7N | 27.4lbf | 3.0s | 198.2g | 7.0oz | 96.8g | 3.4oz | 187mm | 7.36" | 3s-12s | |
| G106-SK | Skidmark | 131.0N | 29.4lbf | 1.4s | 187.0g | 6.6oz | 81.0g | 2.9oz | 187mm | 7.36" | 5s-14s | |
| G118-BS | Blue Streak | 156.0N | 35.1lbf | 1.4s | 188.0g | 6.6oz | 83.0g | 2.9oz | 187mm | 7.36" | 6s-15s | |
| G125-RL | Red Lightning | 170.8N | 38.4lbf | 1.3s | 194.5g | 6.9oz | 89.6g | 3.2oz | 187mm | 7.36" | 5s-14s | |
| G131-SS | Smoky Sam | 155.0N | 34.8lbf | 1.1s | 200.0g | 7.1oz | 94.0g | 3.3oz | 187mm | 7.36" | 5s-14s | |
| H54-WHLB | White Longburn | 103.1N | 23.2lbf | 3.5s | 209.0g | 7.4oz | 96.6g | 3.4oz | 187mm | 7.36" | 3s-10s | |
| H87-IM | Imax | 145.5N | 32.7lbf | 1.9s | 205.0g | 7.2oz | 92.7g | 3.3oz | 187mm | 7.36" | 3s-12s | |
| H90-CL | Classic | 155.0N | 34.8lbf | 1.9s | 190.0g | 6.7oz | 84.0g | 3.0oz | 187mm | 7.36" | 3s-12s | |
| H133-BS | Blue Streak | 200.0N | 45.0lbf | 1.3s | 190.0g | 6.7oz | 85.0g | 3.0oz | 187mm | 7.36" | 5s-14s | |
| H163-WT | White Thunder | 225.0N | 50.6lbf | 1.1s | 187.0g | 6.6oz | 86.0g | 3.0oz | 187mm | 7.36" | 5s-14s | |
| H410-VM | Vmax | 517.5N | 116.3lbf | 0.4s | 182.5g | 6.4oz | 84.5g | 3.0oz | 187mm | 7.36" | 3s-14s | |
| Pro29 4G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H118-CL | Classic | 183.0N | 41.1lbf | 1.9s | 232.0g | 8.2oz | 111.0g | 3.9oz | 231mm | 9.09" | 3s-12s | |
| H123-SK | Skidmark | 145.0N | 32.6lbf | 1.5s | 228.0g | 8.0oz | 106.0g | 3.7oz | 231mm | 9.09" | 3s-12s | |
| H135-WH | White | 166.8N | 37.5lbf | 1.7s | 251.2g | 8.9oz | 119.8g | 4.2oz | 231mm | 9.09" | 3s-12s | |
| H151-RL | Red Lightning | 209.6N | 47.1lbf | 1.4s | 238.0g | 8.4oz | 118.0g | 4.2oz | 231mm | 9.09" | 6s-15s | |
| H170-BS | Blue Streak | 240.0N | 54.0lbf | 1.3s | 232.0g | 8.2oz | 111.0g | 3.9oz | 231mm | 9.09" | 5s-14s | |
| H175-SS | Smoky Sam | 236.0N | 53.1lbf | 1.0s | 247.0g | 8.7oz | 122.0g | 4.3oz | 231mm | 9.09" | 5s-14s | |
| H255-WT | White Thunder | 345.0N | 77.6lbf | 0.9s | 232.0g | 8.2oz | 113.0g | 4.0oz | 231mm | 9.09" | 5s-14s | |

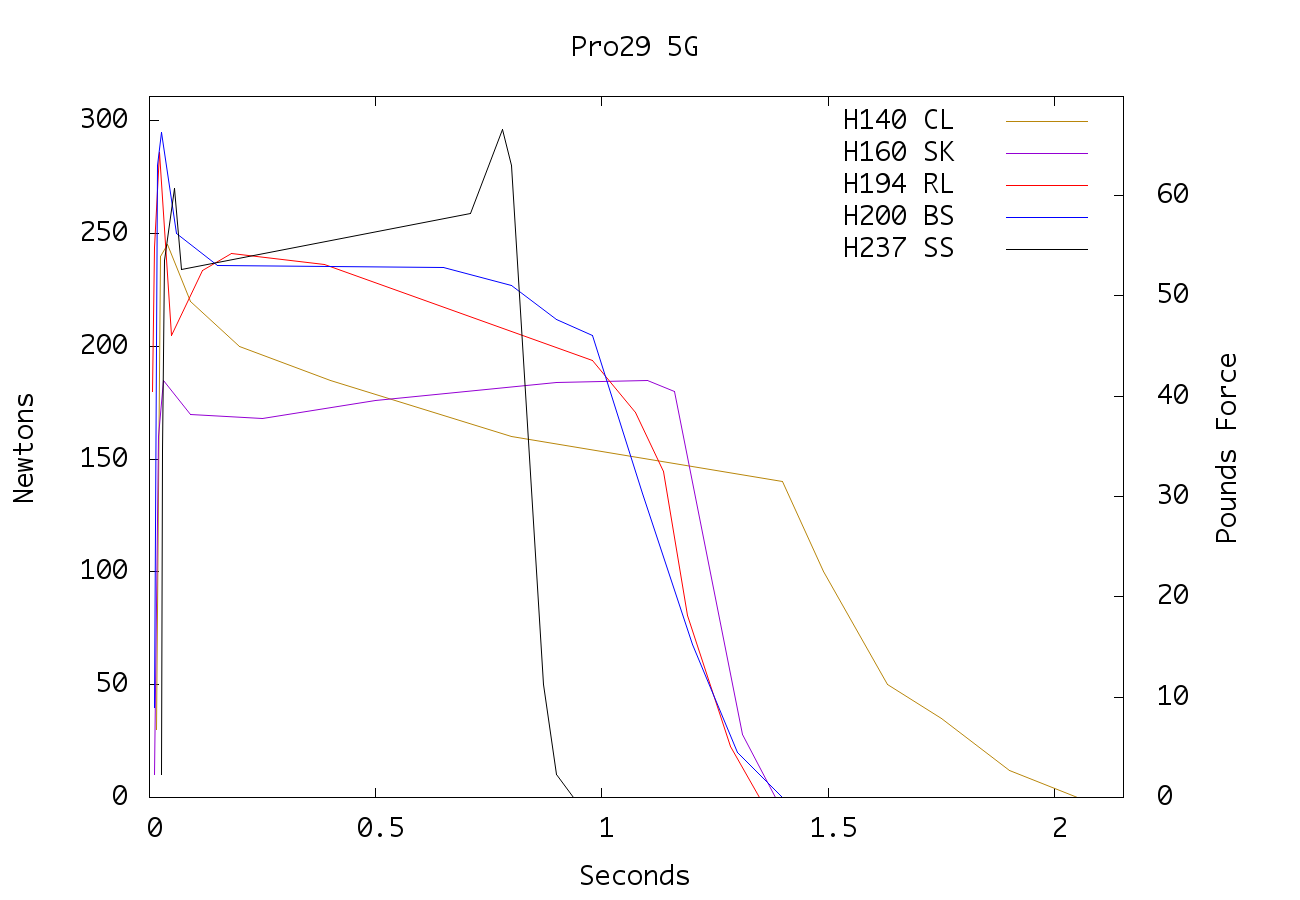

| Pro29 5G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H140-CL | Classic | 245.0N | 55.1lbf | 2.0s | 277.0g | 9.8oz | 139.0g | 4.9oz | 276mm | 10.87" | 2s-11s | |
| H160-SK | Skidmark | 185.0N | 41.6lbf | 1.4s | 272.0g | 9.6oz | 132.0g | 4.7oz | 276mm | 10.87" | 5s-14s | |
| H194-RL | Red Lightning | 286.0N | 64.3lbf | 1.3s | 284.0g | 10.0oz | 145.0g | 5.1oz | 276mm | 10.87" | 5s-14s | |
| H200-BS | Blue Streak | 295.0N | 66.3lbf | 1.4s | 274.0g | 9.7oz | 136.0g | 4.8oz | 276mm | 10.87" | 5s-14s | |
| H237-SS | Smoky Sam | 296.0N | 66.5lbf | 0.9s | 276.0g | 9.7oz | 151.0g | 5.3oz | 276mm | 10.87" | 4s-13s | |

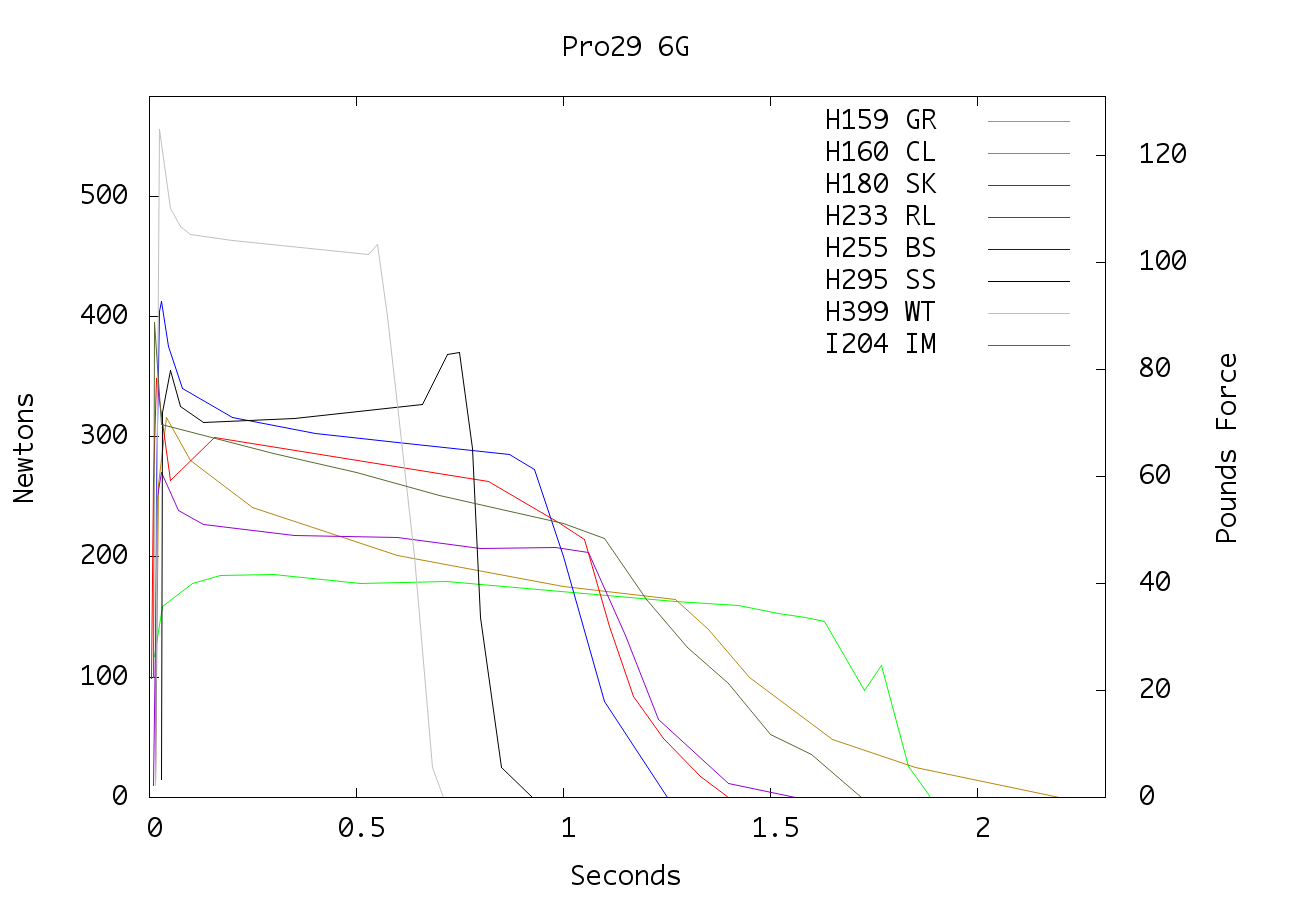

| Pro29 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H159-GR | Green | 185.4N | 41.7lbf | 1.9s | 342.8g | 12.1oz | 187.4g | 6.6oz | 320mm | 12.60" | 6s-15s | |
| H160-CL | Classic | 316.0N | 71.0lbf | 2.2s | 319.0g | 11.3oz | 166.0g | 5.9oz | 320mm | 12.60" | 3s-12s | |
| H180-SK | Skidmark | 270.0N | 60.7lbf | 1.6s | 314.0g | 11.1oz | 158.0g | 5.6oz | 320mm | 12.60" | 5s-14s | |
| H233-RL | Red Lightning | 348.0N | 78.2lbf | 1.4s | 320.0g | 11.3oz | 173.8g | 6.1oz | 320mm | 12.60" | 5s-14s | |
| H255-BS | Blue Streak | 412.0N | 92.6lbf | 1.3s | 318.0g | 11.2oz | 162.0g | 5.7oz | 320mm | 12.60" | 5s-14s | |
| H295-SS | Smoky Sam | 370.0N | 83.2lbf | 0.9s | 320.0g | 11.3oz | 181.0g | 6.4oz | 320mm | 12.60" | 4s-13s | |
| H399-WT | White Thunder | 555.0N | 124.8lbf | 0.7s | 294.0g | 10.4oz | 140.0g | 4.9oz | 320mm | 12.60" | 3s-12s | |
| I204-IM | Imax | 395.0N | 88.8lbf | 1.7s | 349.0g | 12.3oz | 194.0g | 6.8oz | 320mm | 12.60" | 4s-13s | |

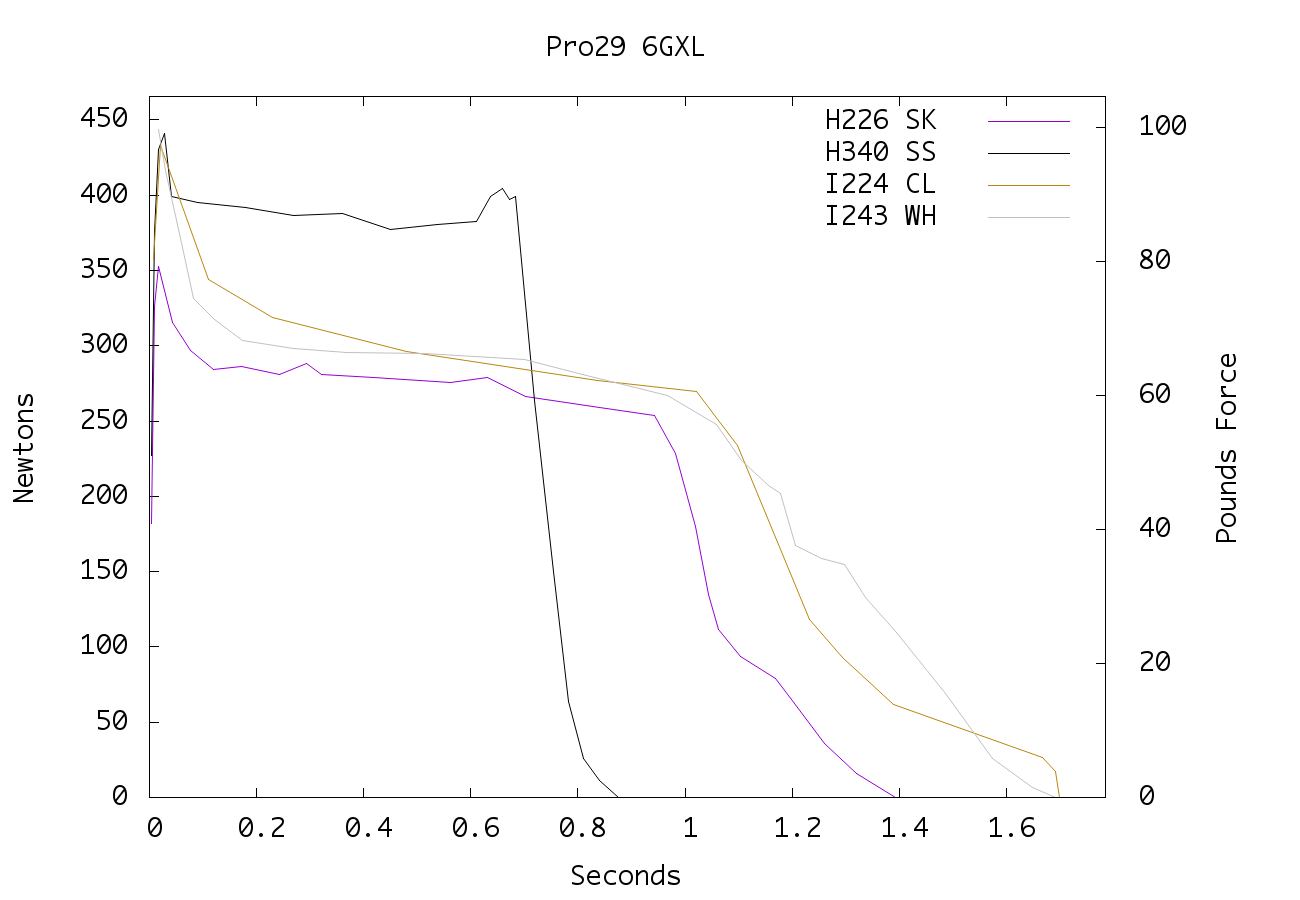

| Pro29 6GXL | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H226-SK | Skidmark | 353.0N | 79.3lbf | 1.4s | 360.0g | 12.7oz | 175.0g | 6.2oz | 365mm | 14.37" | 5s-14s | |
| H340-SS | Smoky Sam | 441.2N | 99.2lbf | 0.9s | 391.0g | 13.8oz | 206.0g | 7.3oz | 365mm | 14.37" | 5s-14s | |
| I224-CL | Classic | 433.1N | 97.4lbf | 1.7s | 370.0g | 13.1oz | 196.7g | 6.9oz | 365mm | 14.37" | 6s-15s | |
| I243-WH | White | 443.4N | 99.7lbf | 1.7s | 398.6g | 14.1oz | 212.1g | 7.5oz | 365mm | 14.37" | 4s-13s | |
| Pro38 | ||||||||||||

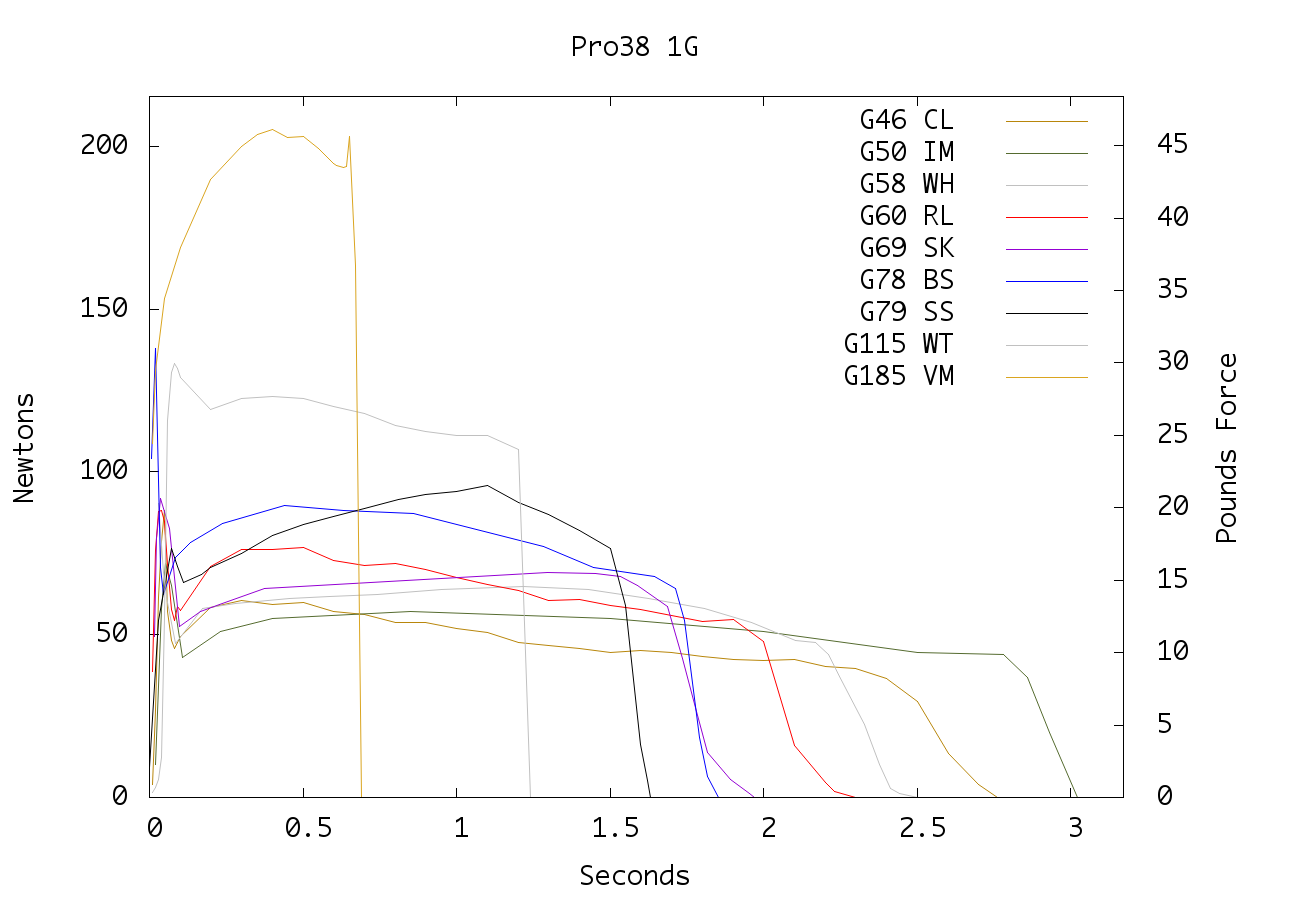

| Pro38 1G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| G46-CL | Classic | 88.0N | 19.8lbf | 2.8s | 197.0g | 6.9oz | 78.0g | 2.8oz | 127mm | 5.00" | 2s-11s | |
| G50-IM | Imax | 72.0N | 16.2lbf | 3.0s | 218.0g | 7.7oz | 77.7g | 2.7oz | 127mm | 5.00" | 6s-15s | |
| G58-WH | White | 90.2N | 20.3lbf | 2.5s | 212.5g | 7.5oz | 76.3g | 2.7oz | 127mm | 5.00" | 4s-13s | |
| G60-RL | Red Lightning | 88.1N | 19.8lbf | 2.3s | 206.0g | 7.3oz | 86.0g | 3.0oz | 127mm | 5.00" | 5s-14s | |
| G69-SK | Skidmark | 91.9N | 20.7lbf | 2.0s | 198.0g | 7.0oz | 67.0g | 2.4oz | 126mm | 4.96" | 5s-14s | |
| G78-BS | Blue Streak | 137.9N | 31.0lbf | 1.9s | 197.0g | 6.9oz | 69.0g | 2.4oz | 126mm | 4.96" | 6s-15s | |
| G79-SS | Smoky Sam | 95.8N | 21.5lbf | 1.6s | 226.0g | 8.0oz | 85.0g | 3.0oz | 127mm | 5.00" | 4s-13s | |
| G115-WT | White Thunder | 133.3N | 30.0lbf | 1.2s | 195.0g | 6.9oz | 77.0g | 2.7oz | 127mm | 5.00" | 4s-13s | |
| G185-VM | Vmax | 205.0N | 46.1lbf | 0.7s | 188.0g | 6.6oz | 71.7g | 2.5oz | 127mm | 5.00" | 3s-12s | |

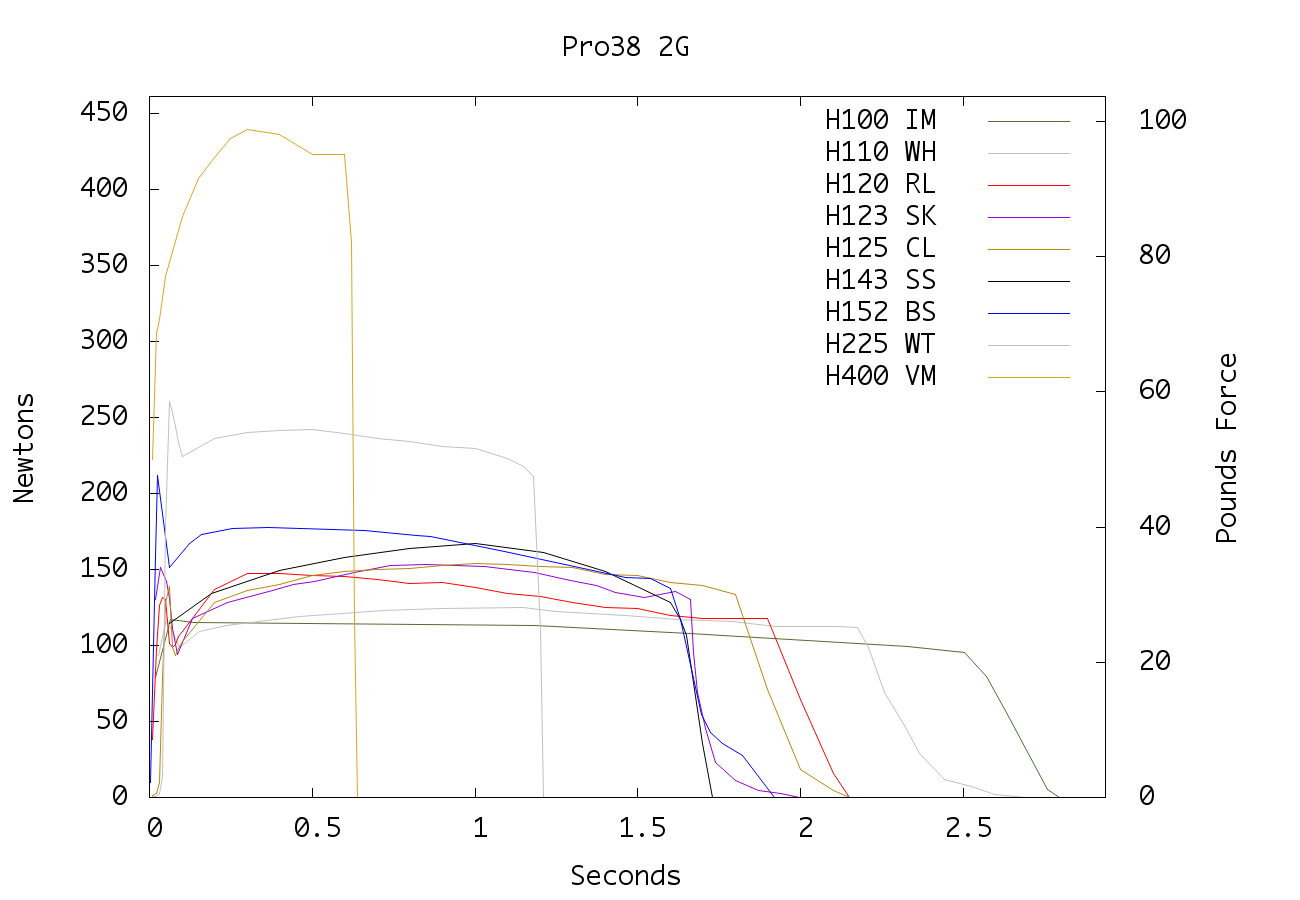

| Pro38 2G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H100-IM | Imax | 116.8N | 26.3lbf | 2.8s | 327.0g | 11.5oz | 173.0g | 6.1oz | 186mm | 7.32" | 6s-15s | |
| H110-WH | White | 124.9N | 28.1lbf | 2.7s | 325.3g | 11.5oz | 152.6g | 5.4oz | 186mm | 7.32" | 5s-14s | |
| H120-RL | Red Lightning | 147.2N | 33.1lbf | 2.1s | 295.0g | 10.4oz | 141.0g | 5.0oz | 186mm | 7.32" | 5s-14s | |
| H123-SK | Skidmark | 153.1N | 34.4lbf | 2.0s | 297.0g | 10.5oz | 123.0g | 4.3oz | 186mm | 7.32" | 5s-14s | |
| H125-CL | Classic | 154.1N | 34.6lbf | 2.1s | 293.0g | 10.3oz | 138.0g | 4.9oz | 186mm | 7.32" | 3s-12s | |
| H143-SS | Smoky Sam | 167.0N | 37.5lbf | 1.7s | 347.0g | 12.2oz | 165.4g | 5.8oz | 186mm | 7.32" | 4s-13s | |
| H152-BS | Blue Streak | 212.1N | 47.7lbf | 1.9s | 298.0g | 10.5oz | 138.0g | 4.9oz | 186mm | 7.32" | 6s-15s | |
| H225-WT | White Thunder | 260.7N | 58.6lbf | 1.2s | 293.0g | 10.3oz | 141.0g | 5.0oz | 186mm | 7.32" | 5s-14s | |
| H400-VM | Vmax | 439.2N | 98.7lbf | 0.6s | 283.6g | 10.0oz | 135.2g | 4.8oz | 186mm | 7.32" | 4s-13s | |

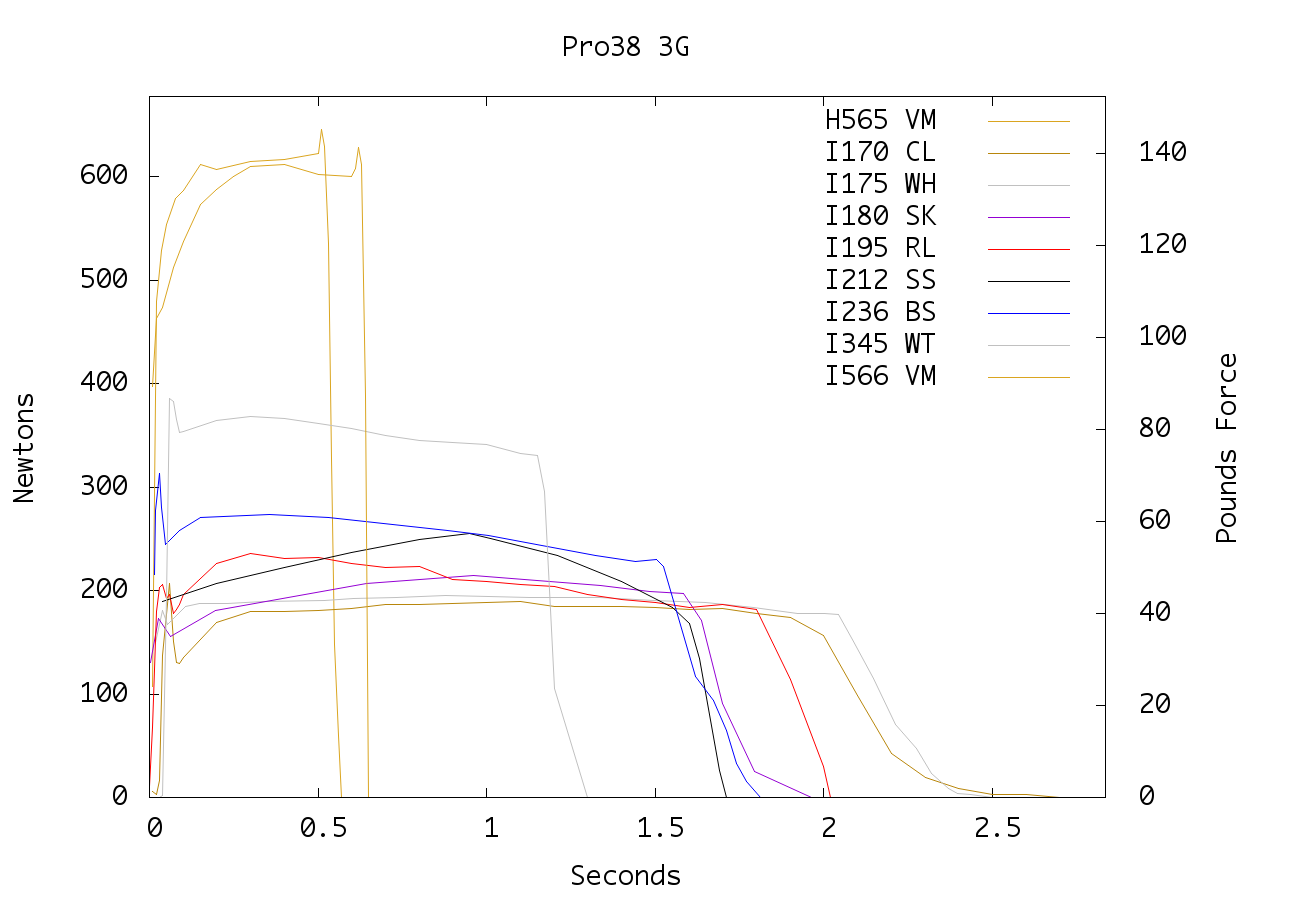

| Pro38 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| H565-VM | Vmax | 645.3N | 145.1lbf | 0.6s | 362.2g | 12.8oz | 174.2g | 6.1oz | 245mm | 9.65" | 1s-14s | |
| I170-CL | Classic | 206.7N | 46.5lbf | 2.7s | 392.0g | 13.8oz | 203.0g | 7.2oz | 245mm | 9.65" | 3s-12s | |
| I175-WH | White | 195.1N | 43.9lbf | 2.5s | 437.5g | 15.4oz | 228.9g | 8.1oz | 245mm | 9.65" | 1s-14s | |
| I180-SK | Skidmark | 214.9N | 48.3lbf | 2.0s | 394.0g | 13.9oz | 200.0g | 7.1oz | 243mm | 9.57" | 5s-14s | |
| I195-RL | Red Lightning | 235.4N | 52.9lbf | 2.0s | 417.0g | 14.7oz | 226.0g | 8.0oz | 245mm | 9.65" | 7s-16s | |
| I212-SS | Smoky Sam | 255.2N | 57.4lbf | 1.7s | 475.0g | 16.8oz | 248.1g | 8.8oz | 245mm | 9.65" | 5s-14s | |
| I236-BS | Blue Streak | 312.7N | 70.3lbf | 1.8s | 400.0g | 14.1oz | 204.0g | 7.2oz | 243mm | 9.57" | 8s-17s | |
| I345-WT | White Thunder | 386.0N | 86.8lbf | 1.3s | 395.0g | 13.9oz | 205.0g | 7.2oz | 245mm | 9.65" | 6s-15s | |
| I566-VM | Vmax | 628.6N | 141.3lbf | 0.7s | 384.2g | 13.6oz | 197.8g | 7.0oz | 245mm | 9.65" | 6s-15s | |
| Pro38 4G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| I223-SK | Skidmark | 260.2N | 58.5lbf | 2.0s | 494.0g | 17.4oz | 266.0g | 9.4oz | 303mm | 11.93" | 5s-14s | |
| I242-WH | White | 286.1N | 64.3lbf | 2.4s | 549.9g | 19.4oz | 224.8g | 7.9oz | 303mm | 11.93" | 6s-15s | |
| I255-RL | Red Lightning | 311.8N | 70.1lbf | 2.0s | 516.0g | 18.2oz | 290.0g | 10.2oz | 303mm | 11.93" | 7s-16s | |
| I285-CL | Classic | 350.6N | 78.8lbf | 1.9s | 505.9g | 17.8oz | 272.4g | 9.6oz | 303mm | 11.93" | 6s-15s | |
| I287-SS | Smoky Sam | 344.2N | 77.4lbf | 1.7s | 605.0g | 21.3oz | 330.8g | 11.7oz | 303mm | 11.93" | 6s-15s | |
| I303-BS | Blue Streak | 414.2N | 93.1lbf | 1.8s | 500.0g | 17.6oz | 270.0g | 9.5oz | 303mm | 11.93" | 7s-16s | |
| I470-WT | White Thunder | 546.9N | 122.9lbf | 1.2s | 495.0g | 17.5oz | 267.0g | 9.4oz | 303mm | 11.93" | 6s-15s | |
| I800-VM | Vmax | 888.7N | 199.8lbf | 0.5s | 457.0g | 16.1oz | 232.5g | 8.2oz | 303mm | 11.93" | 6s-15s | |

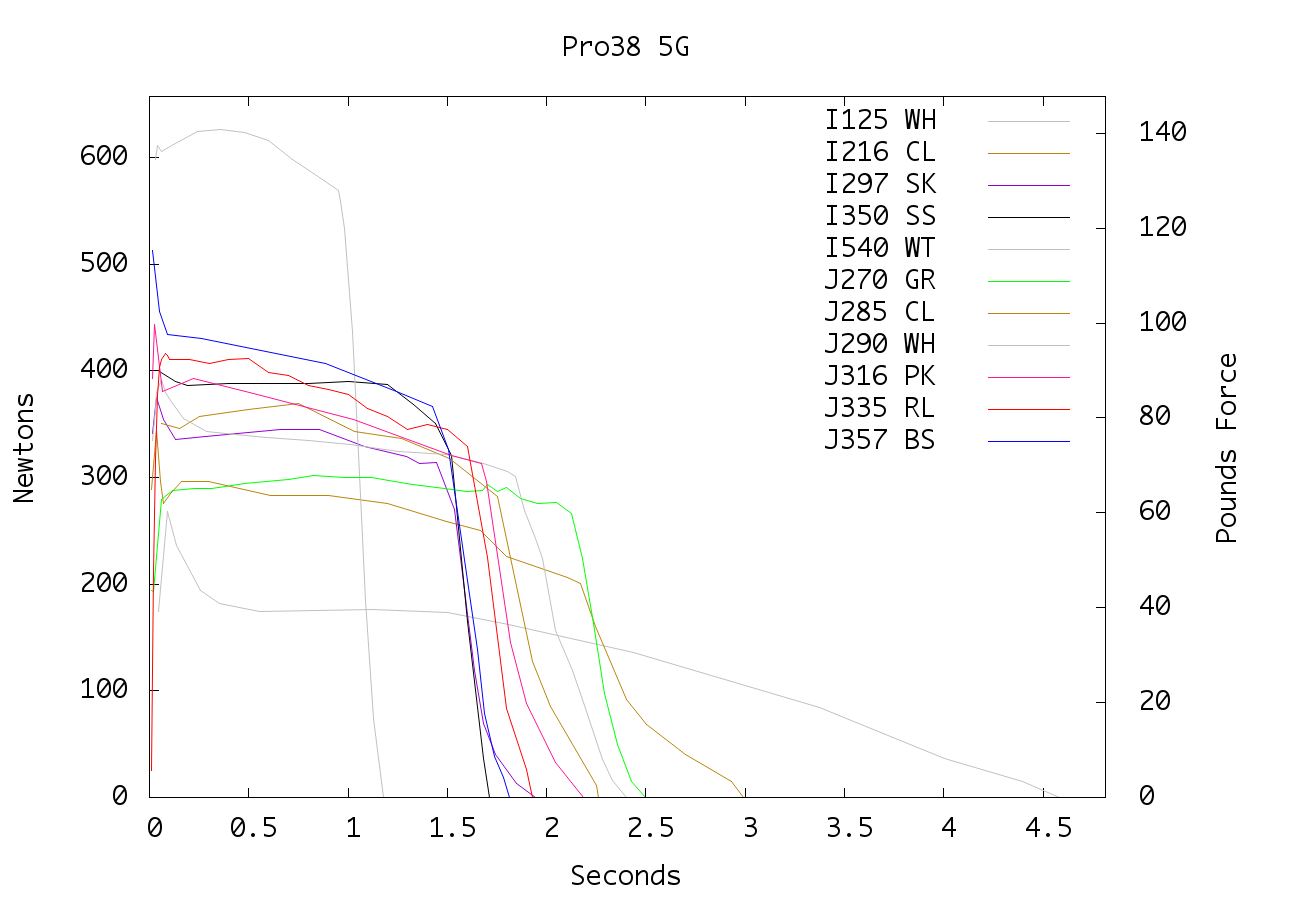

| Pro38 5G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| I125-WH | White | 267.8N | 60.2lbf | 4.6s | 647.0g | 22.8oz | 355.6g | 12.5oz | 367mm | 14.45" | 3s-10s | |
| I216-CL | Classic | 343.7N | 77.3lbf | 3.0s | 601.0g | 21.2oz | 312.5g | 11.0oz | 367mm | 14.45" | 5s-14s | |
| I297-SK | Skidmark | 375.1N | 84.3lbf | 1.9s | 591.0g | 20.8oz | 329.0g | 11.6oz | 367mm | 14.45" | 6s-15s | |
| I350-SS | Smoky Sam | 399.7N | 89.9lbf | 1.7s | 782.0g | 27.6oz | 413.5g | 14.6oz | 367mm | 14.45" | 7s-16s | |
| I540-WT | White Thunder | 626.0N | 140.7lbf | 1.2s | 598.2g | 21.1oz | 328.8g | 11.6oz | 367mm | 14.45" | 7s-16s | |
| J270-GR | Green | 301.9N | 67.9lbf | 2.5s | 654.8g | 23.1oz | 376.0g | 13.3oz | 367mm | 14.45" | 5s-13s | |
| J285-CL | Classic | 369.3N | 83.0lbf | 2.3s | 595.0g | 21.0oz | 312.5g | 11.0oz | 367mm | 14.45" | 6s-15s | |
| J290-WH | White | 391.6N | 88.0lbf | 2.4s | 659.8g | 23.3oz | 381.5g | 13.5oz | 367mm | 14.45" | 6s-15s | |
| J316-PK | Pink | 443.2N | 99.6lbf | 2.2s | 607.1g | 21.4oz | 350.8g | 12.4oz | 367mm | 14.45" | 8s-17s | |
| J335-RL | Red Lightning | 416.0N | 93.5lbf | 1.9s | 627.0g | 22.1oz | 366.0g | 12.9oz | 367mm | 14.45" | 6s-15s | |
| J357-BS | Blue Streak | 512.9N | 115.3lbf | 1.8s | 601.0g | 21.2oz | 337.0g | 11.9oz | 367mm | 14.45" | 8s-17s | |

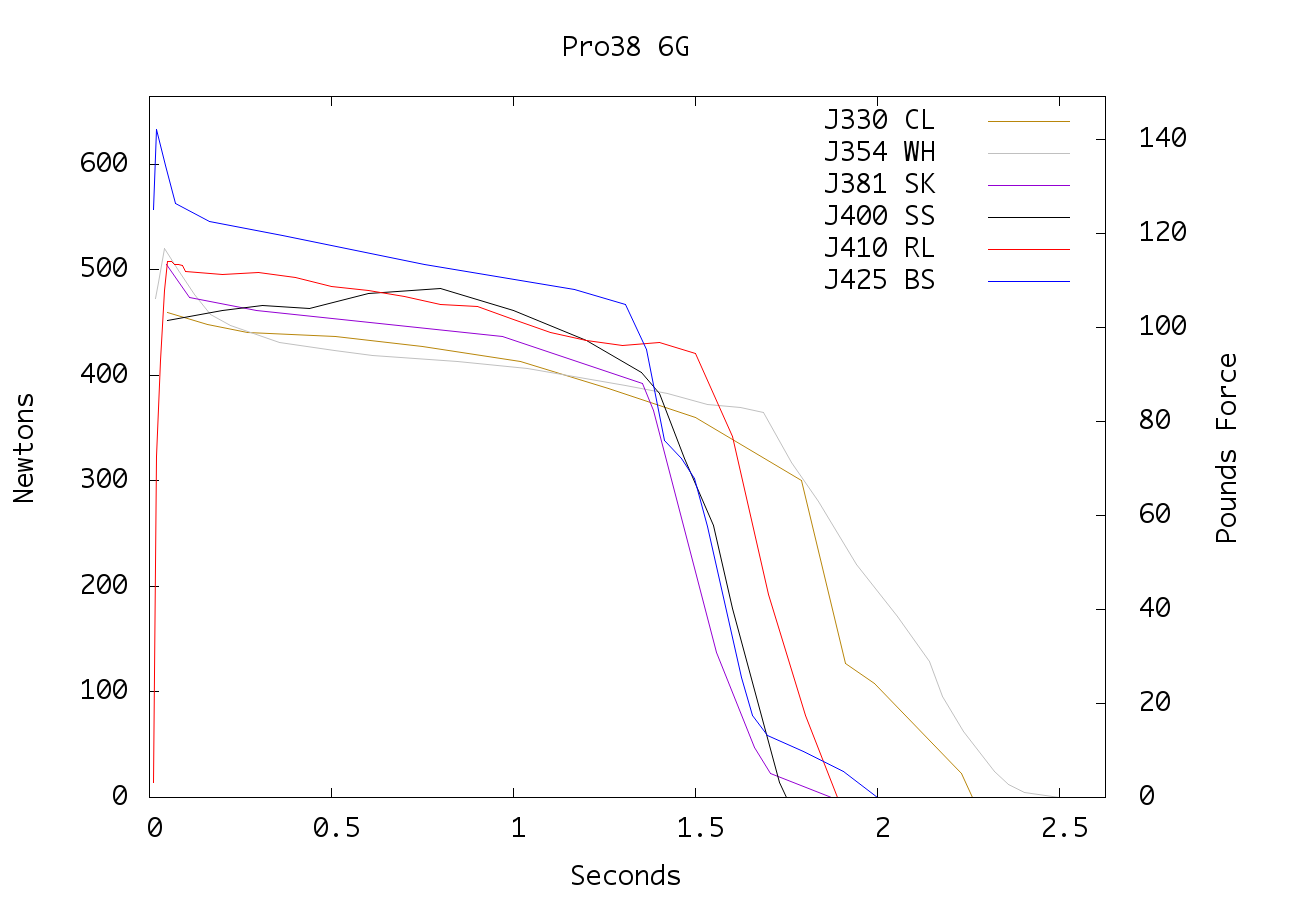

| Pro38 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| J330-CL | Classic | 459.3N | 103.3lbf | 2.3s | 702.0g | 24.8oz | 375.0g | 13.2oz | 421mm | 16.57" | 7s-16s | |
| J354-WH | White | 519.7N | 116.8lbf | 2.5s | 778.2g | 27.5oz | 457.8g | 16.1oz | 421mm | 16.57" | 7s-16s | |
| J381-SK | Skidmark | 505.0N | 113.5lbf | 1.9s | 688.0g | 24.3oz | 396.0g | 14.0oz | 421mm | 16.57" | 6s-15s | |
| J400-SS | Smoky Sam | 482.1N | 108.4lbf | 1.8s | 702.0g | 24.8oz | 489.6g | 17.3oz | 421mm | 16.57" | 7s-16s | |
| J410-RL | Red Lightning | 507.7N | 114.1lbf | 1.9s | 735.0g | 25.9oz | 434.0g | 15.3oz | 421mm | 16.57" | 7s-16s | |
| J425-BS | Blue Streak | 632.4N | 142.2lbf | 2.0s | 866.0g | 30.5oz | 511.0g | 18.0oz | 421mm | 16.57" | 7s-16s | |

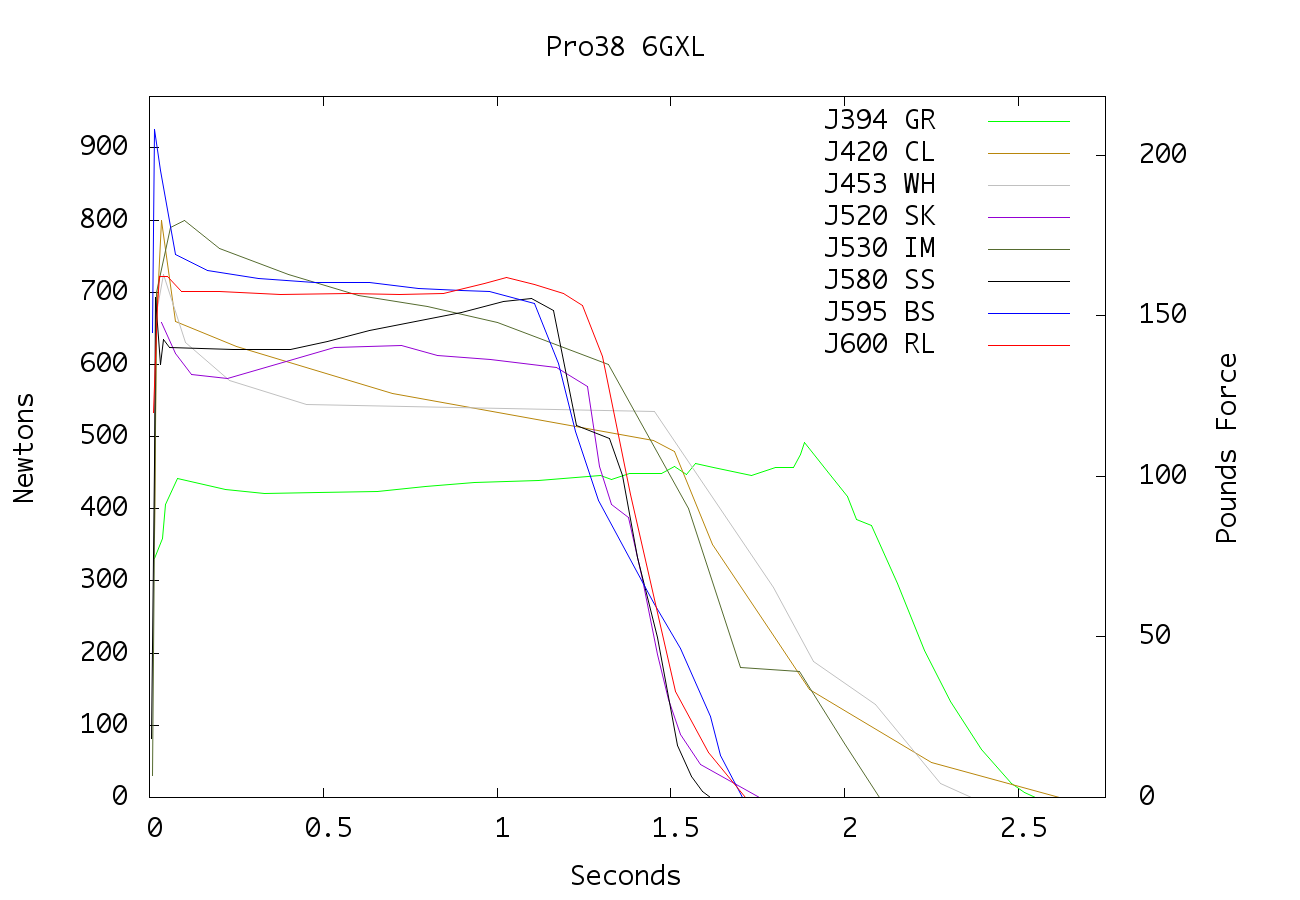

| Pro38 6GXL | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| J394-GR | Green | 491.8N | 110.5lbf | 2.5s | 938.9g | 33.1oz | 572.1g | 20.2oz | 500mm | 19.69" | 4s-13s | |
| J420-CL | Classic | 800.0N | 179.8lbf | 2.6s | 874.0g | 30.8oz | 522.0g | 18.4oz | 500mm | 19.69" | 6s-15s | |
| J453-WH | White | 725.2N | 163.0lbf | 2.4s | 964.3g | 34.0oz | 613.2g | 21.6oz | 500mm | 19.69" | 7s-16s | |
| J520-SK | Skidmark | 658.7N | 148.1lbf | 1.8s | 850.0g | 30.0oz | 498.0g | 17.6oz | 500mm | 19.69" | 7s-16s | |
| J530-IM | Imax | 800.0N | 179.8lbf | 2.1s | 977.0g | 34.5oz | 625.0g | 22.0oz | 500mm | 19.69" | 6s-15s | |
| J580-SS | Smoky Sam | 692.9N | 155.8lbf | 1.6s | 1044.0g | 36.8oz | 688.0g | 24.3oz | 500mm | 19.69" | 8s-17s | |
| J595-BS | Blue Streak | 925.0N | 207.9lbf | 1.7s | 866.0g | 30.5oz | 511.0g | 18.0oz | 500mm | 19.69" | 7s-16s | |
| J600-RL | Red Lightning | 721.9N | 162.3lbf | 1.7s | 906.0g | 32.0oz | 551.0g | 19.4oz | 500mm | 19.69" | 7s-16s | |
| Pro54 | ||||||||||||

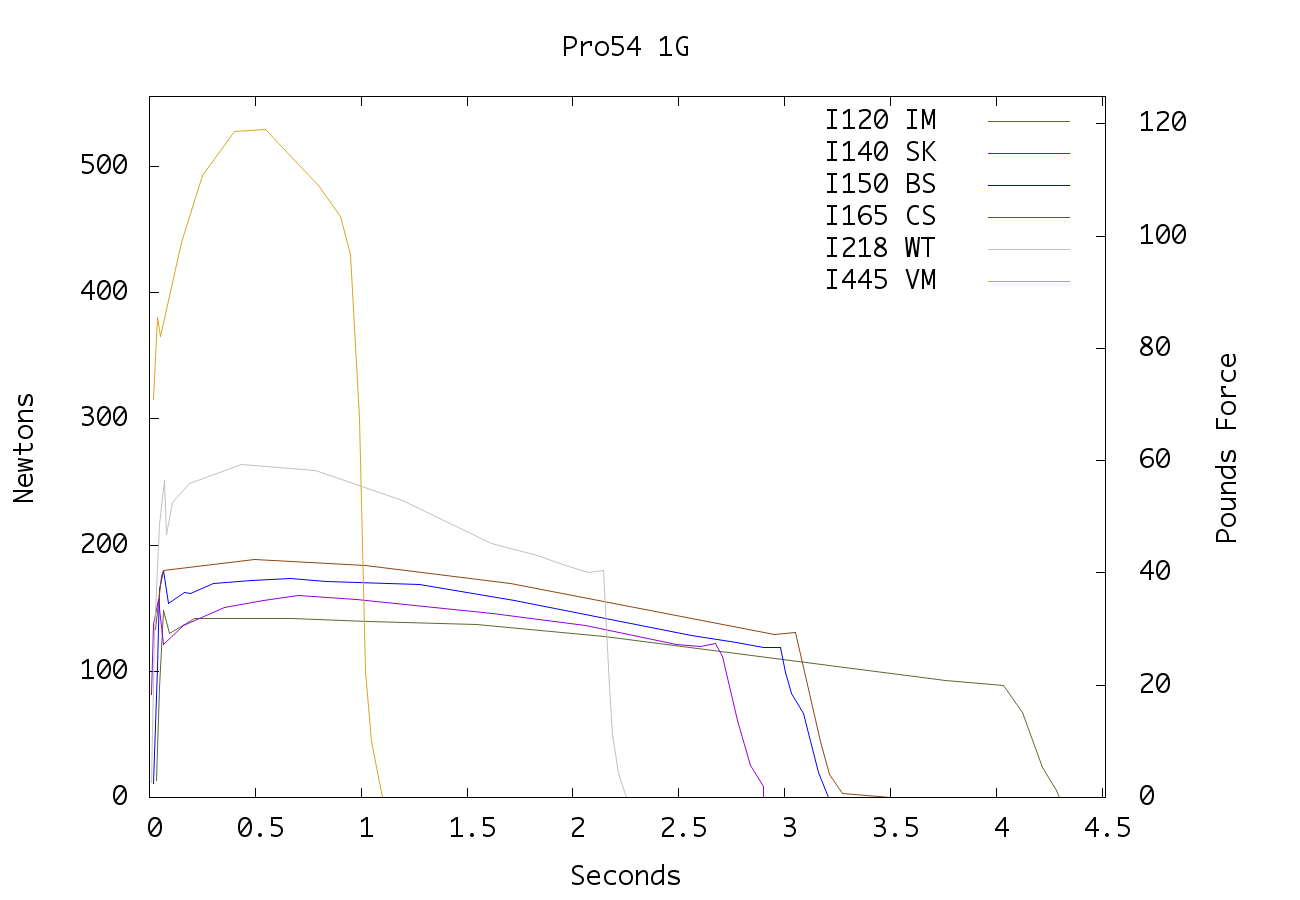

| Pro54 1G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| I120-IM | Imax | 148.5N | 33.4lbf | 4.3s | 623.2g | 22.0oz | 300.0g | 10.6oz | 143mm | 5.63" | 5s-15s | |
| I140-SK | Skidmark | 160.2N | 36.0lbf | 2.9s | 564.3g | 19.9oz | 239.2g | 8.4oz | 143mm | 5.63" | 4s-14s | |
| I150-BS | Blue Streak | 179.9N | 40.4lbf | 3.2s | 570.0g | 20.1oz | 226.0g | 8.0oz | 143mm | 5.63" | 1s-11s | |
| I165-CS | C-Star | 188.6N | 42.4lbf | 3.5s | 594.0g | 21.0oz | 267.0g | 9.4oz | 69mm | 2.72" | 7s-17s | |
| I218-WT | White Thunder | 263.7N | 59.3lbf | 2.3s | 580.0g | 20.5oz | 230.0g | 8.1oz | 143mm | 5.63" | 4s-14s | |
| I445-VM | Vmax | 529.0N | 118.9lbf | 1.1s | 575.0g | 20.3oz | 242.0g | 8.5oz | 143mm | 5.63" | 6s-16s | |

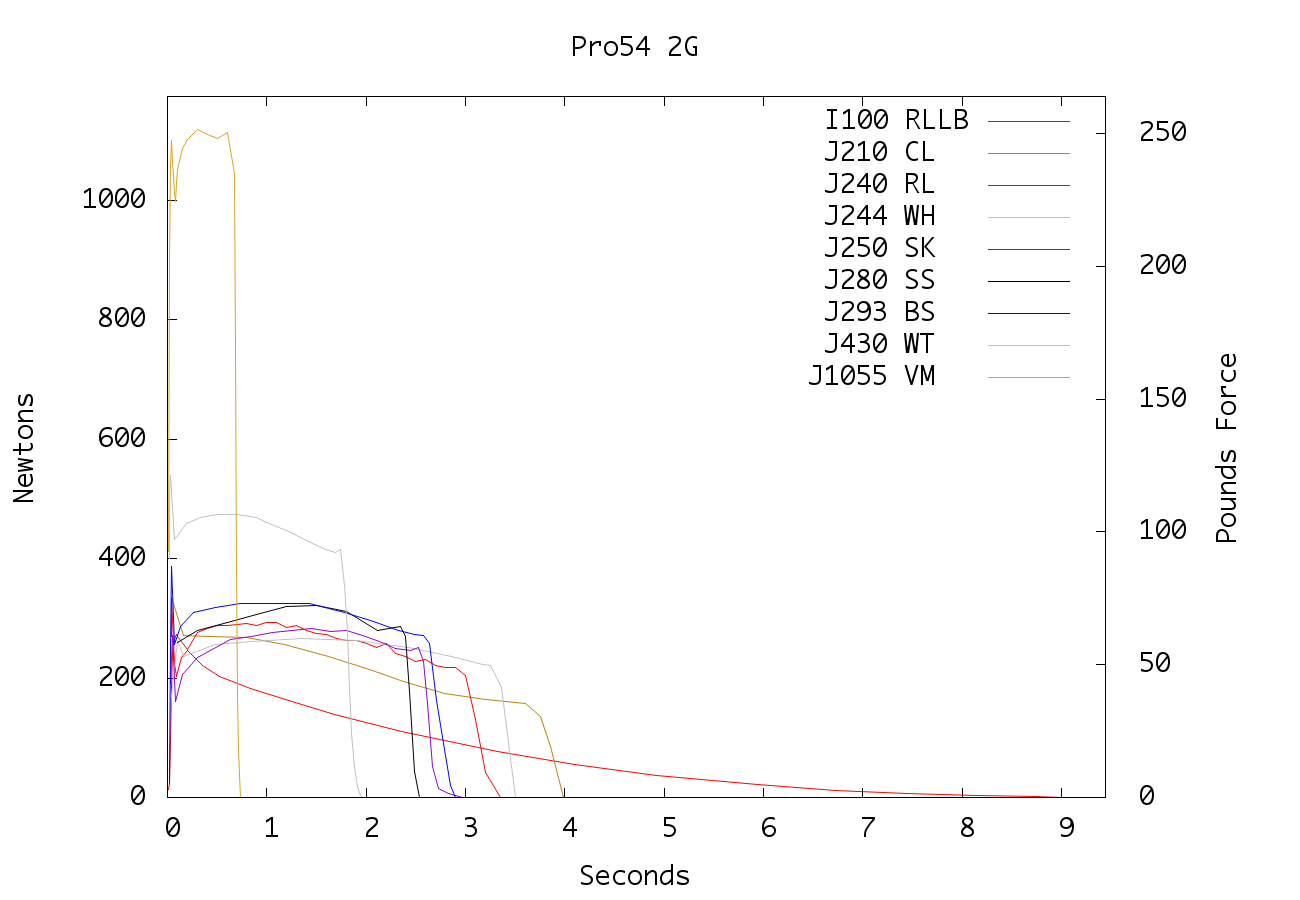

| Pro54 2G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| I100-RLLB | Red Longburn | 332.4N | 74.7lbf | 9.0s | 807.0g | 28.5oz | 350.1g | 12.3oz | 236mm | 9.29" | 7s-17s | |
| J210-CL | Classic | 335.0N | 75.3lbf | 4.0s | 842.0g | 29.7oz | 396.0g | 14.0oz | 236mm | 9.29" | 6s-16s | |
| J240-RL | Red Lightning | 292.6N | 65.8lbf | 3.3s | 875.0g | 30.9oz | 469.0g | 16.5oz | 236mm | 9.29" | 6s-16s | |
| J244-WH | White | 266.5N | 59.9lbf | 3.5s | 911.0g | 32.1oz | 511.0g | 18.0oz | 236mm | 9.29" | 5s-14s | |
| J250-SK | Skidmark | 283.6N | 63.8lbf | 3.0s | 830.0g | 29.3oz | 406.0g | 14.3oz | 236mm | 9.29" | 6s-15s | |
| J280-SS | Smoky Sam | 321.1N | 72.2lbf | 2.5s | 954.0g | 33.7oz | 512.0g | 18.1oz | 236mm | 9.29" | 6s-16s | |
| J293-BS | Blue Streak | 386.3N | 86.8lbf | 2.9s | 840.0g | 29.6oz | 416.0g | 14.7oz | 236mm | 9.29" | 3s-13s | |
| J430-WT | White Thunder | 538.7N | 121.1lbf | 2.0s | 799.8g | 28.2oz | 384.0g | 13.5oz | 236mm | 9.29" | 0s-18s | |
| J1055-VM | Vmax | 1117.9N | 251.3lbf | 0.7s | 772.0g | 27.2oz | 379.0g | 13.4oz | 236mm | 9.29" | 7s-17s | |

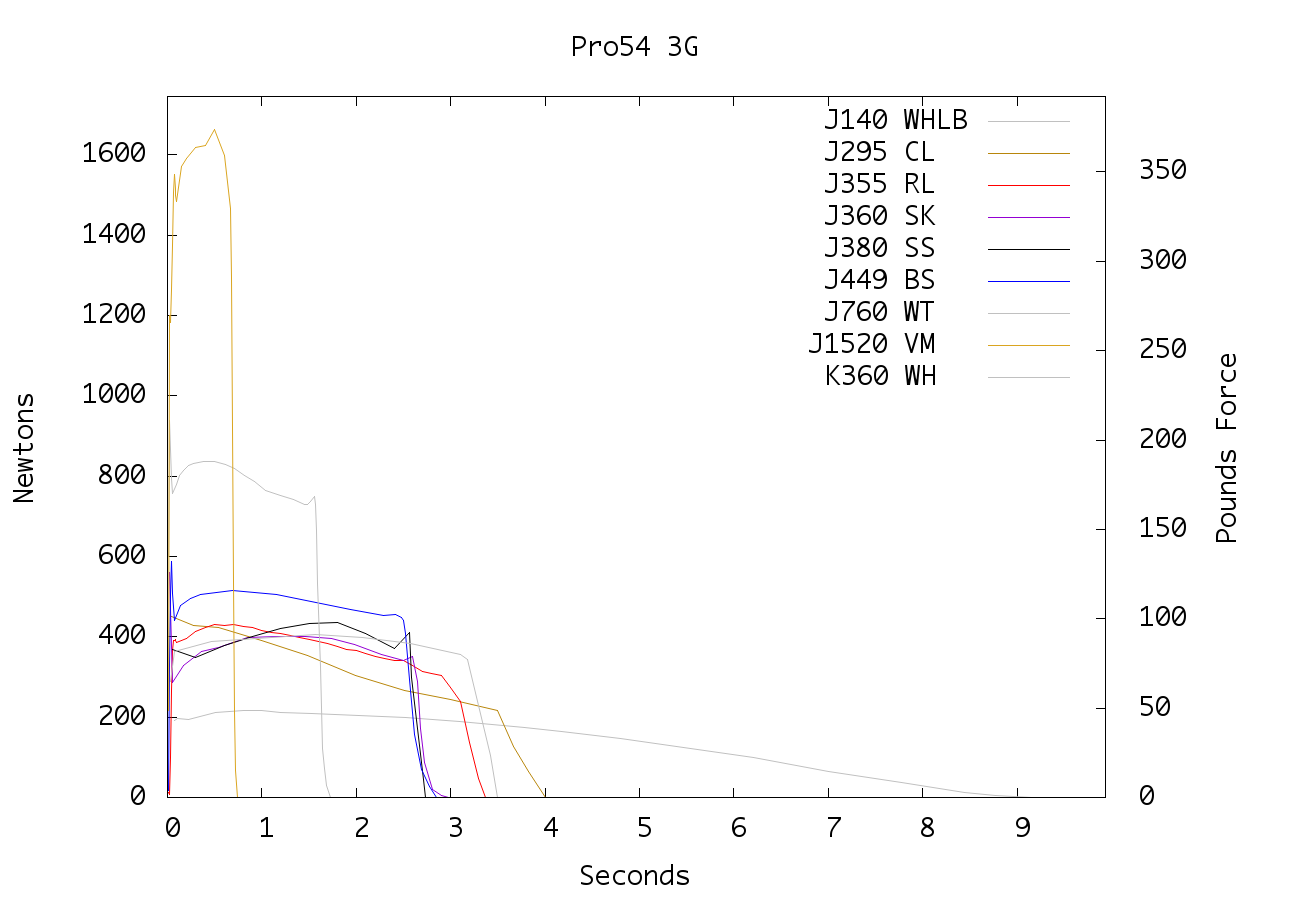

| Pro54 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| J140-WHLB | White Longburn | 216.2N | 48.6lbf | 9.5s | 1279.8g | 45.1oz | 680.0g | 24.0oz | 329mm | 12.95" | P | |
| J295-CL | Classic | 450.5N | 101.3lbf | 4.0s | 1119.0g | 39.5oz | 594.0g | 21.0oz | 329mm | 12.95" | 6s-16s | |
| J355-RL | Red Lightning | 430.9N | 96.9lbf | 3.4s | 1175.0g | 41.4oz | 680.0g | 24.0oz | 329mm | 12.95" | 7s-17s | |
| J360-SK | Skidmark | 560.7N | 126.0lbf | 3.0s | 1104.0g | 38.9oz | 606.0g | 21.4oz | 329mm | 12.95" | 6s-15s | |
| J380-SS | Smoky Sam | 434.6N | 97.7lbf | 2.7s | 1293.3g | 45.6oz | 769.0g | 27.1oz | 329mm | 12.95" | 6s-16s | |
| J449-BS | Blue Streak | 586.9N | 131.9lbf | 2.8s | 1122.0g | 39.6oz | 624.0g | 22.0oz | 329mm | 12.95" | 5s-15s | |
| J760-WT | White Thunder | 938.6N | 211.0lbf | 1.7s | 1076.8g | 38.0oz | 576.0g | 20.3oz | 329mm | 12.95" | 9s-19s | |
| J1520-VM | Vmax | 1661.7N | 373.6lbf | 0.7s | 1026.0g | 36.2oz | 544.0g | 19.2oz | 329mm | 12.95" | 7s-17s | |
| K360-WH | White | 405.2N | 91.1lbf | 3.5s | 1232.0g | 43.5oz | 747.0g | 26.3oz | 329mm | 12.95" | 4s-13s | |

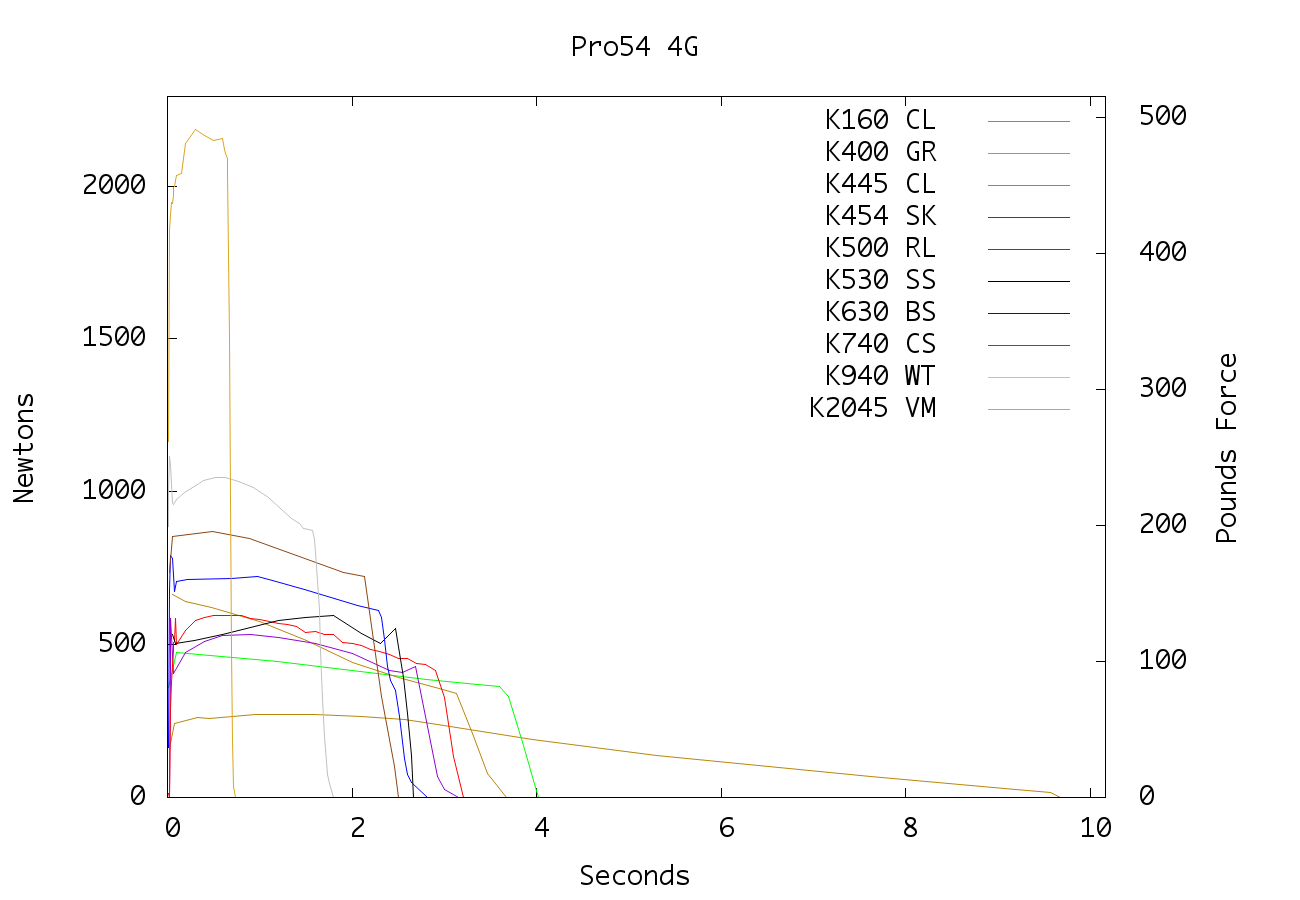

| Pro54 4G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K160-CL | Classic | 272.2N | 61.2lbf | 9.7s | 1472.0g | 51.9oz | 848.0g | 29.9oz | 404mm | 15.91" | 6 | |
| K400-GR | Green | 475.4N | 106.9lbf | 4.0s | 1551.3g | 54.7oz | 969.0g | 34.2oz | 404mm | 15.91" | 4s-14s | |
| K445-CL | Classic | 664.8N | 149.5lbf | 3.7s | 1398.0g | 49.3oz | 792.0g | 27.9oz | 404mm | 15.91" | 7s-17s | |
| K454-SK | Skidmark | 586.0N | 131.7lbf | 3.1s | 1391.0g | 49.1oz | 821.0g | 29.0oz | 404mm | 15.91" | 10s-19s | |
| K500-RL | Red Lightning | 595.3N | 133.8lbf | 3.2s | 1476.0g | 52.1oz | 904.0g | 31.9oz | 404mm | 15.91" | 8s-18s | |
| K530-SS | Smoky Sam | 596.4N | 134.1lbf | 2.7s | 1639.8g | 57.8oz | 1025.0g | 36.2oz | 404mm | 15.91" | 6s-16s | |
| K630-BS | Blue Streak | 791.4N | 177.9lbf | 2.8s | 1410.0g | 49.7oz | 912.0g | 32.2oz | 405mm | 15.94" | 5s-15s | |
| K740-CS | C-Star | 869.3N | 195.4lbf | 2.5s | 1469.0g | 51.8oz | 900.0g | 31.7oz | 404mm | 15.91" | 8s-18s | |
| K940-WT | White Thunder | 1115.8N | 250.8lbf | 1.8s | 1366.5g | 48.2oz | 768.0g | 27.1oz | 404mm | 15.91" | 8s-18s | |
| K2045-VM | Vmax | 2184.0N | 491.0lbf | 0.7s | 1290.0g | 45.5oz | 725.0g | 25.6oz | 404mm | 15.91" | 7s-17s | |

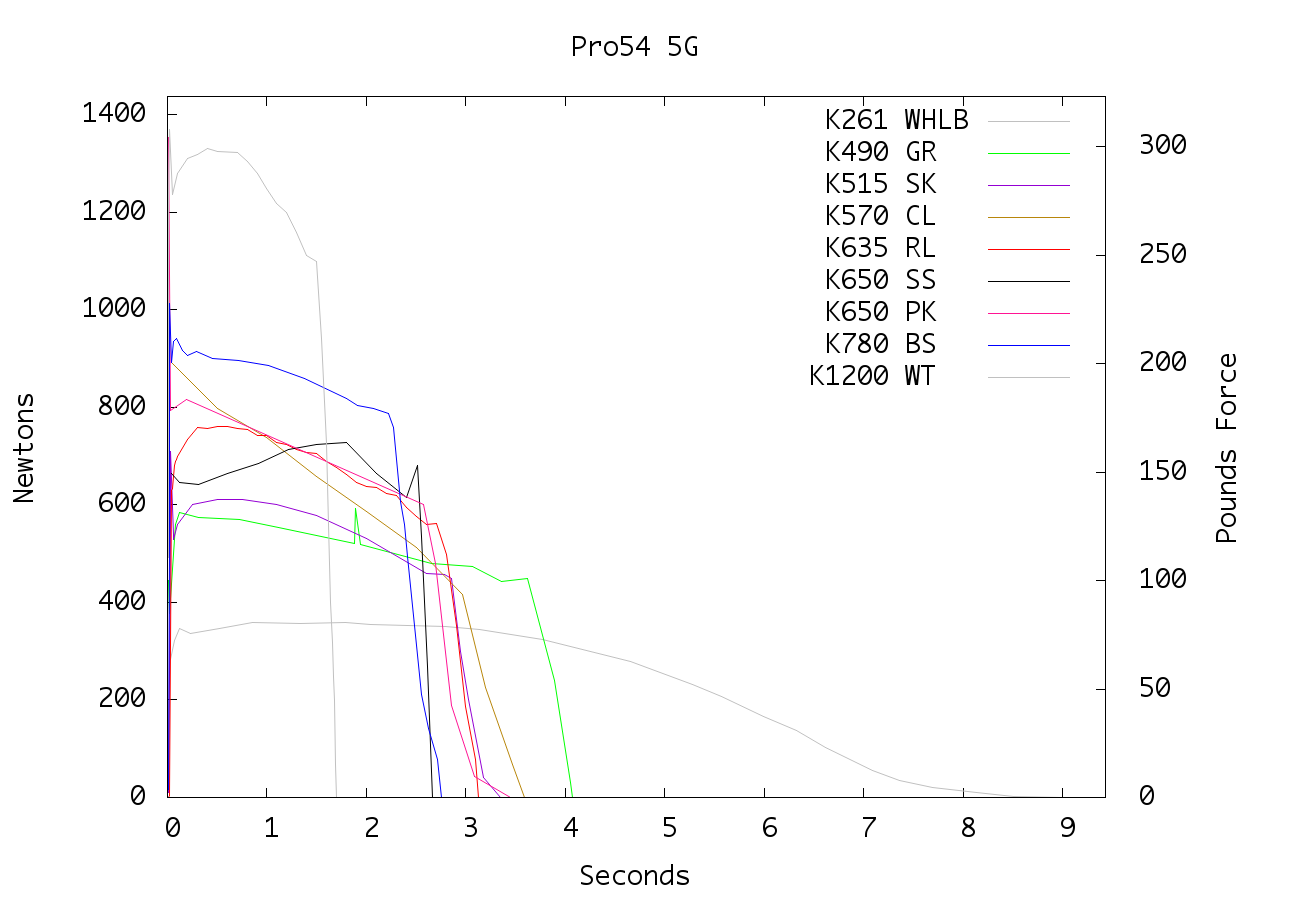

| Pro54 5G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K261-WHLB | White Longburn | 359.3N | 80.8lbf | 9.0s | 1931.7g | 68.1oz | 1151.9g | 40.6oz | 488mm | 19.21" | P | |
| K490-GR | Green | 593.8N | 133.5lbf | 4.1s | 1854.1g | 65.4oz | 1201.2g | 42.4oz | 488mm | 19.21" | 6s-16s | |
| K515-SK | Skidmark | 710.0N | 159.6lbf | 3.4s | 1654.0g | 58.3oz | 1013.0g | 35.7oz | 488mm | 19.21" | 6s-16s | |
| K570-CL | Classic | 892.7N | 200.7lbf | 3.6s | 1685.0g | 59.4oz | 990.0g | 34.9oz | 488mm | 19.21" | 7s-17s | |
| K635-RL | Red Lightning | 760.8N | 171.0lbf | 3.1s | 1768.0g | 62.4oz | 1119.0g | 39.5oz | 488mm | 19.21" | 7s-17s | |
| K650-PK | Pink | 1353.5N | 304.3lbf | 3.5s | 1710.0g | 60.3oz | 1065.1g | 37.6oz | 488mm | 19.21" | 11s-21s | |
| K650-SS | Smoky Sam | 728.7N | 163.8lbf | 2.7s | 1989.9g | 70.2oz | 1281.0g | 45.2oz | 488mm | 19.21" | 6s-16s | |
| K780-BS | Blue Streak | 1014.2N | 228.0lbf | 2.8s | 1700.0g | 60.0oz | 1140.0g | 40.2oz | 488mm | 19.21" | 5s-15s | |
| K1200-WT | White Thunder | 1369.5N | 307.9lbf | 1.7s | 1631.9g | 57.6oz | 981.4g | 34.6oz | 488mm | 19.21" | 7s-17s | |

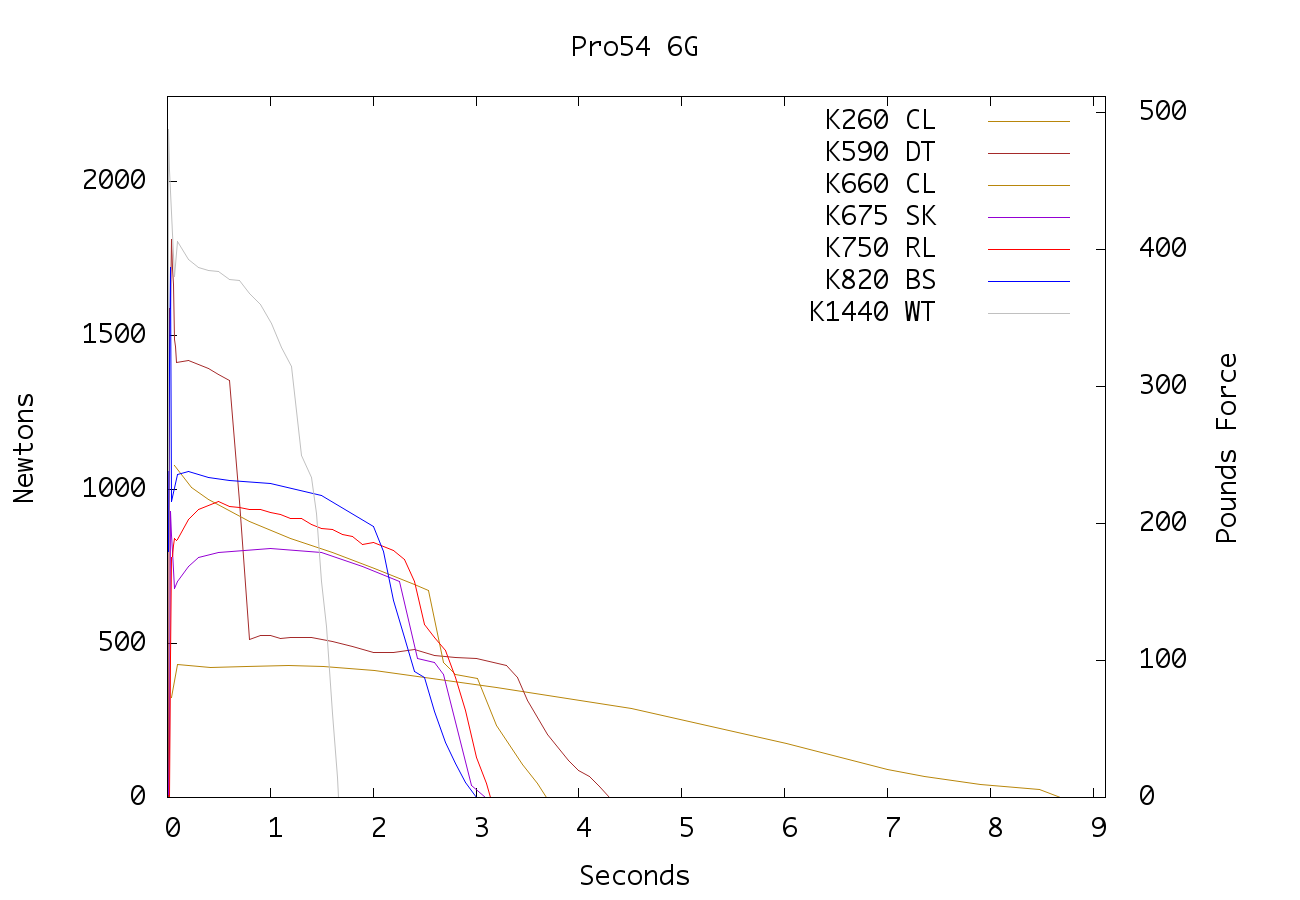

| Pro54 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K260-CL | Classic | 430.4N | 96.8lbf | 8.7s | 2047.5g | 72.2oz | 1241.3g | 43.8oz | 572mm | 22.52" | P | |
| K590-DT | Dual Thrust | 1812.1N | 407.4lbf | 4.3s | 1994.0g | 70.3oz | 1239.0g | 43.7oz | 572mm | 22.52" | 7s-15s | |
| K660-CL | Classic | 1078.9N | 242.5lbf | 3.7s | 1949.0g | 68.7oz | 1177.0g | 41.5oz | 572mm | 22.52" | 7s-17s | |
| K675-SK | Skidmark | 930.0N | 209.1lbf | 3.1s | 1940.0g | 68.4oz | 1200.0g | 42.3oz | 572mm | 22.52" | 8s-18s | |
| K750-RL | Red Lightning | 960.0N | 215.8lbf | 3.1s | 2057.0g | 72.6oz | 1324.0g | 46.7oz | 572mm | 22.52" | 8s-18s | |
| K820-BS | Blue Streak | 1720.0N | 386.7lbf | 3.0s | 1982.0g | 69.9oz | 1232.0g | 43.5oz | 572mm | 22.52" | 7s-17s | |
| K1440-WT | White Thunder | 2168.2N | 487.4lbf | 1.7s | 1892.6g | 66.8oz | 1162.4g | 41.0oz | 572mm | 22.52" | 7s-17s | |

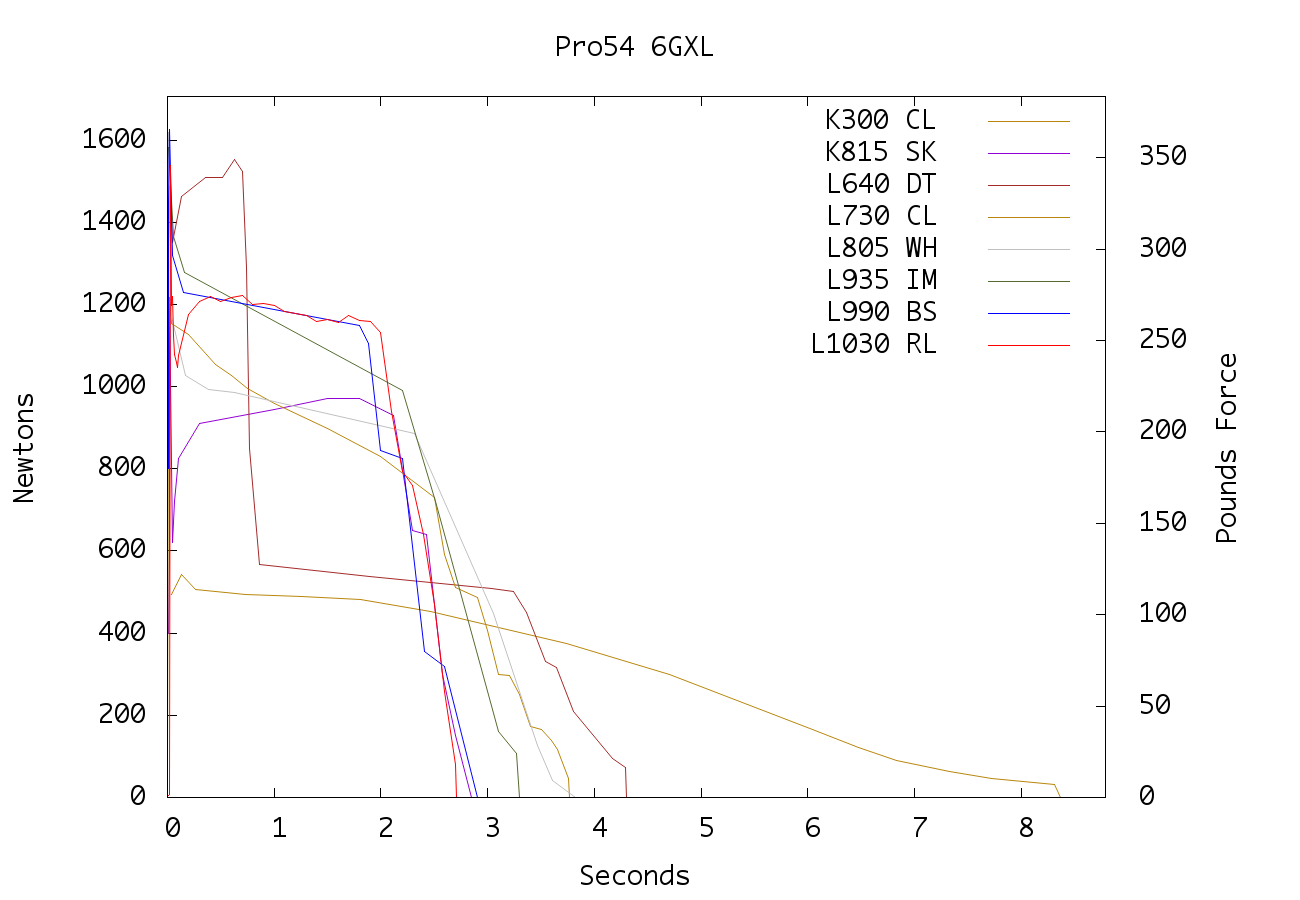

| Pro54 6GXL | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K300-CL | Classic | 543.3N | 122.1lbf | 8.4s | 2270.0g | 80.1oz | 1377.6g | 48.6oz | 649mm | 25.55" | P | |
| K815-SK | Skidmark | 1200.0N | 269.8lbf | 2.9s | 2197.0g | 77.5oz | 1371.0g | 48.4oz | 649mm | 25.55" | P | |
| L640-DT | Dual Thrust | 1554.1N | 349.4lbf | 4.3s | 2244.0g | 79.2oz | 1455.0g | 51.3oz | 649mm | 25.55" | P | |
| L730-CL | Classic | 1216.6N | 273.5lbf | 3.8s | 2247.0g | 79.3oz | 1351.0g | 47.7oz | 649mm | 25.55" | P | |
| L805-WH | White | 1618.1N | 363.7lbf | 3.8s | 2502.5g | 88.3oz | 1675.2g | 59.1oz | 649mm | 25.55" | P | |
| L935-IM | Imax | 1582.7N | 355.8lbf | 3.3s | 2542.0g | 89.7oz | 1734.7g | 61.2oz | 649mm | 25.55" | P | |
| L990-BS | Blue Streak | 1625.0N | 365.3lbf | 2.9s | 2236.0g | 78.9oz | 1417.0g | 50.0oz | 649mm | 25.55" | P | |
| L1030-RL | Red Lightning | 1539.4N | 346.1lbf | 2.7s | 2338.0g | 82.5oz | 1520.0g | 53.6oz | 649mm | 25.55" | P | |
| Pro75 | ||||||||||||

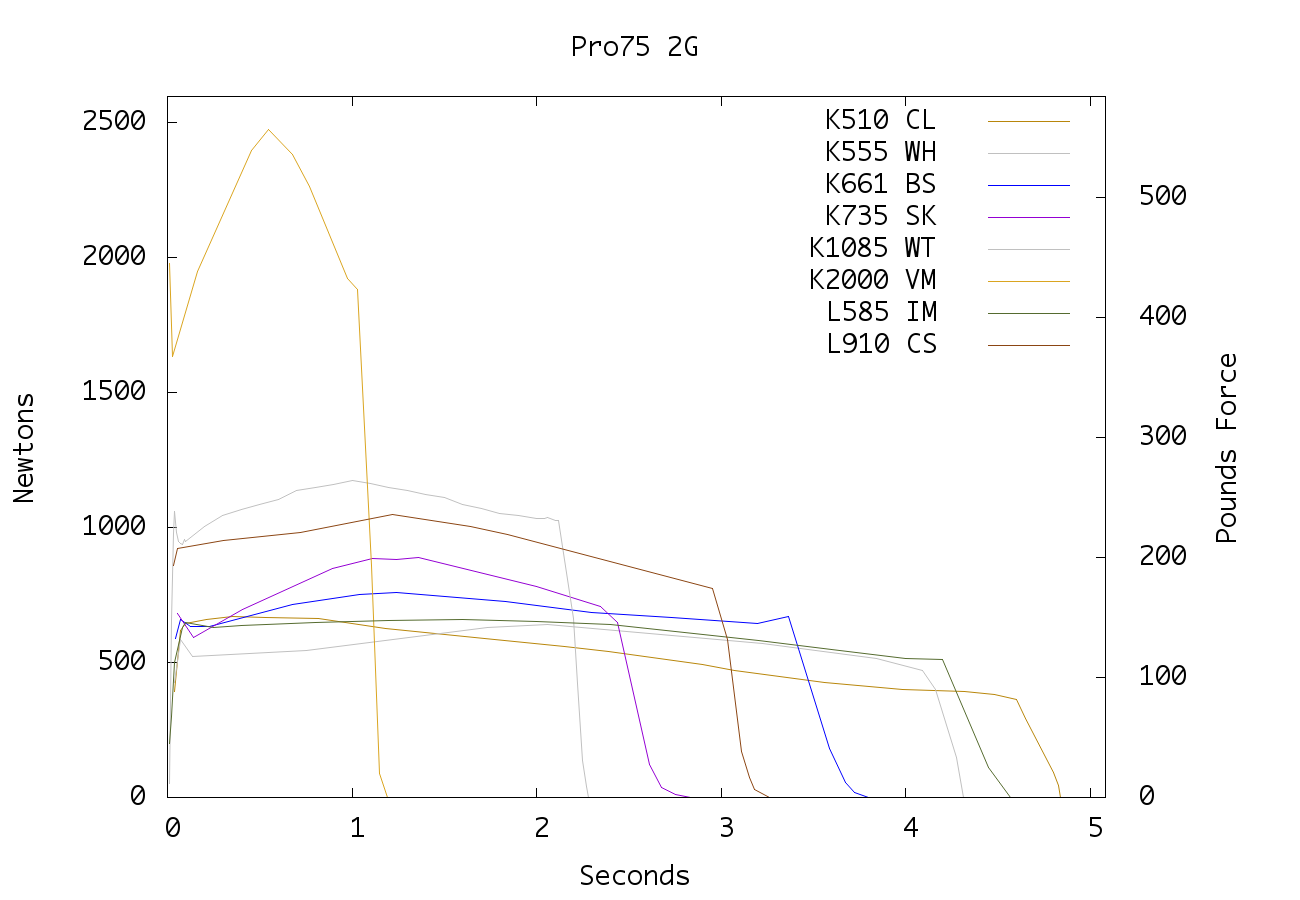

| Pro75 2G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K510-CL | Classic | 669.2N | 150.4lbf | 4.8s | 2590.0g | 91.4oz | 1197.0g | 42.2oz | 350mm | 13.78" | P | |
| K555-WH | White | 639.5N | 143.8lbf | 4.3s | 2759.0g | 97.3oz | 1486.0g | 52.4oz | 350mm | 13.78" | P | |
| K661-BS | Blue Streak | 758.1N | 170.4lbf | 3.8s | 2527.8g | 89.2oz | 1262.5g | 44.5oz | 350mm | 13.78" | P | |
| K735-SK | Skidmark | 889.3N | 199.9lbf | 2.8s | 2508.8g | 88.5oz | 1222.1g | 43.1oz | 350mm | 13.78" | P | |
| K1085-WT | White Thunder | 1174.5N | 264.0lbf | 2.3s | 2430.0g | 85.7oz | 1199.0g | 42.3oz | 350mm | 13.78" | P | |
| K2000-VM | Vmax | 2473.7N | 556.1lbf | 1.2s | 2464.5g | 86.9oz | 1164.2g | 41.1oz | 350mm | 13.78" | P | |
| L585-IM | Imax | 659.0N | 148.1lbf | 4.6s | 2784.0g | 98.2oz | 1524.0g | 53.8oz | 350mm | 13.78" | P | |
| L910-CS | C-Star | 1047.5N | 235.5lbf | 3.3s | 2615.8g | 92.3oz | 1364.3g | 48.1oz | 350mm | 13.78" | P | |

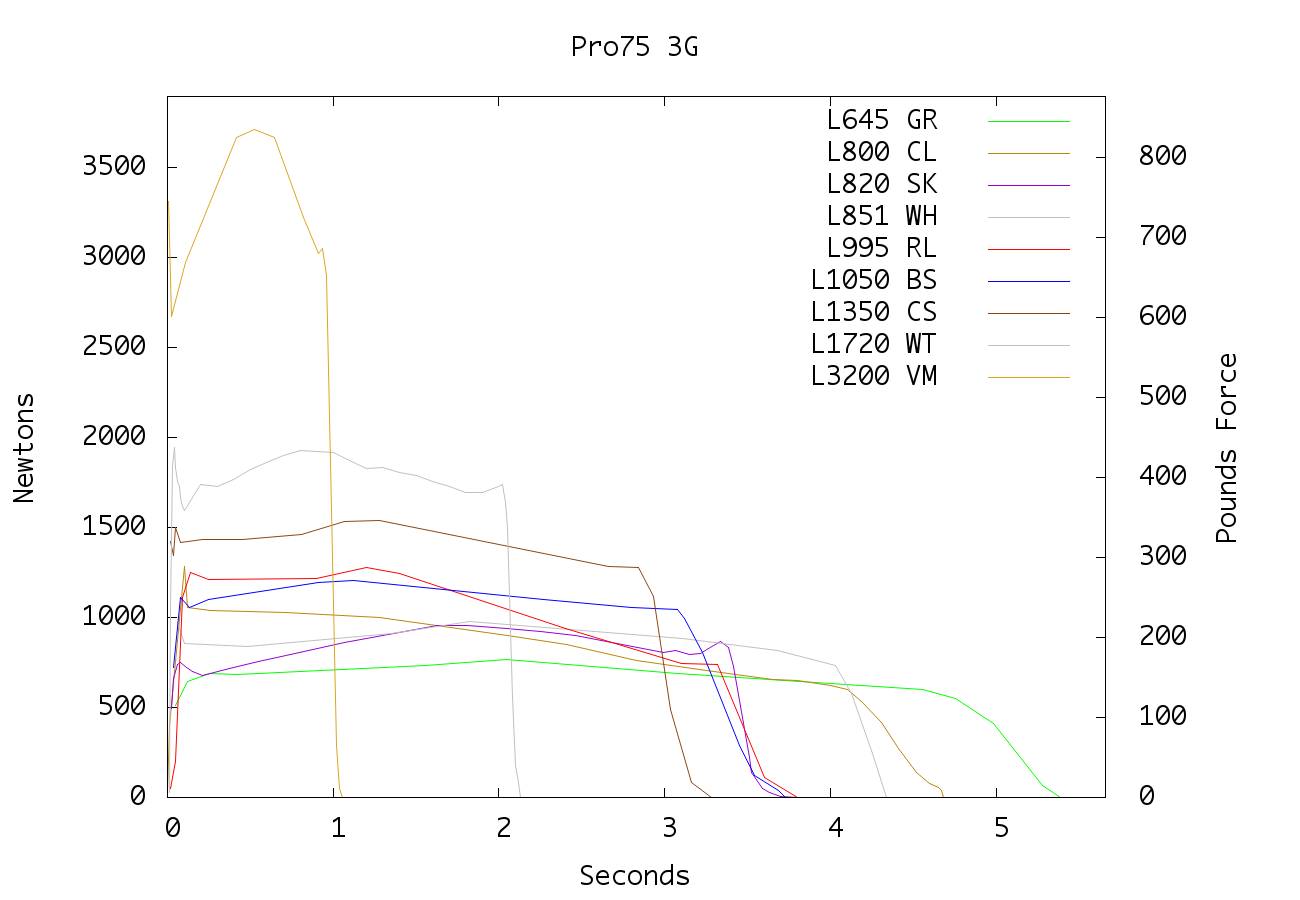

| Pro75 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| L645-GR | Green | 765.0N | 172.0lbf | 5.4s | 3751.8g | 132.3oz | 2144.1g | 75.6oz | 486mm | 19.13" | P | |
| L800-CL | Classic | 1285.5N | 289.0lbf | 4.7s | 3511.0g | 123.8oz | 1795.0g | 63.3oz | 486mm | 19.13" | P | |
| L820-SK | Skidmark | 957.8N | 215.3lbf | 3.8s | 3420.0g | 120.6oz | 1760.0g | 62.1oz | 486mm | 19.13" | P | |
| L851-WH | White | 980.1N | 220.3lbf | 4.3s | 3789.0g | 133.7oz | 2195.0g | 77.4oz | 486mm | 19.13" | P | |
| L995-RL | Red Lightning | 1280.0N | 287.7lbf | 3.8s | 3591.0g | 126.7oz | 1996.0g | 70.4oz | 486mm | 19.13" | P | |
| L1050-BS | Blue Streak | 1207.3N | 271.4lbf | 3.7s | 3447.7g | 121.6oz | 1863.4g | 65.7oz | 486mm | 19.13" | P | |
| L1350-CS | C-Star | 1540.7N | 346.4lbf | 3.3s | 3570.7g | 126.0oz | 2024.5g | 71.4oz | 486mm | 19.13" | P | |
| L1720-WT | White Thunder | 1946.7N | 437.6lbf | 2.1s | 3341.0g | 117.9oz | 1755.0g | 61.9oz | 486mm | 19.13" | P | |
| L3200-VM | Vmax | 3711.9N | 834.4lbf | 1.1s | 3263.7g | 115.1oz | 1658.4g | 58.5oz | 486mm | 19.13" | P | |
| Pro75 4G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| L1115-CL | Classic | 1713.2N | 385.1lbf | 4.5s | 4404.0g | 155.3oz | 2394.0g | 84.4oz | 621mm | 24.45" | P | |
| L1355-SS | Smoky Sam | 1750.0N | 393.4lbf | 3.2s | 4962.0g | 175.0oz | 3076.0g | 108.5oz | 621mm | 24.45" | P | |
| L1395-BS | Blue Streak | 1800.0N | 404.6lbf | 3.5s | 4323.0g | 152.5oz | 2475.0g | 87.3oz | 621mm | 24.45" | P | |
| L2375-WT | White Thunder | 2608.3N | 586.3lbf | 2.1s | 4161.0g | 146.8oz | 2321.0g | 81.9oz | 621mm | 24.45" | P | |
| M1230-IM | Imax | 1507.1N | 338.8lbf | 4.7s | 4844.0g | 170.9oz | 2992.0g | 105.5oz | 621mm | 24.45" | P | |
| M1830-CS | C-Star | 2300.8N | 517.2lbf | 3.2s | 4524.0g | 159.6oz | 2666.0g | 94.0oz | 621mm | 24.45" | P | |
| M2250-CS | C-Star | 2663.2N | 598.7lbf | 2.5s | 4415.0g | 155.7oz | 2628.0g | 92.7oz | 621mm | 24.45" | P | |

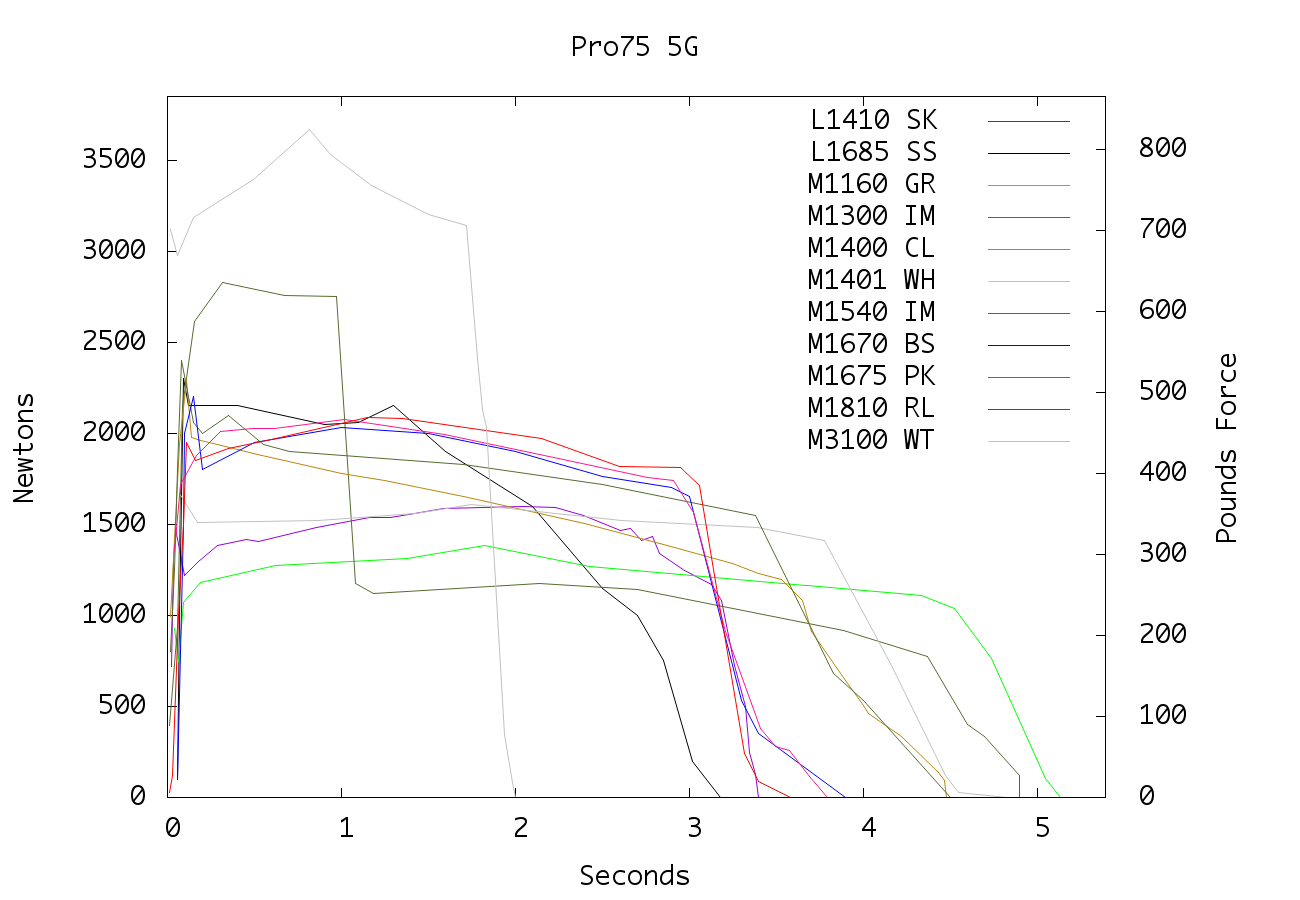

| Pro75 5G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| L1410-SK | Skidmark | 1596.3N | 358.9lbf | 3.4s | 5115.0g | 180.4oz | 2875.0g | 101.4oz | 757mm | 29.80" | P | |
| L1685-SS | Smoky Sam | 2300.0N | 517.0lbf | 3.2s | 6051.0g | 213.4oz | 3830.0g | 135.1oz | 757mm | 29.80" | P | |
| M1160-GR | Green | 1381.9N | 310.7lbf | 5.1s | 5698.0g | 201.0oz | 3517.0g | 124.1oz | 757mm | 29.80" | P | |
| M1300-IM | Imax | 2827.1N | 635.5lbf | 4.9s | 5657.0g | 199.5oz | 3595.0g | 126.8oz | 757mm | 29.80" | P | |
| M1400-CL | Classic | 2291.8N | 515.2lbf | 4.5s | 5302.0g | 187.0oz | 2992.0g | 105.5oz | 757mm | 29.80" | P | |
| M1401-WH | White | 1669.3N | 375.3lbf | 4.8s | 5774.0g | 203.7oz | 3615.0g | 127.5oz | 757mm | 29.80" | P | |
| M1540-IM | Imax | 2400.0N | 539.5lbf | 4.5s | 5906.0g | 208.3oz | 3778.0g | 133.3oz | 757mm | 29.80" | P | |
| M1670-BS | Blue Streak | 2200.0N | 494.6lbf | 3.9s | 5231.0g | 184.5oz | 3101.0g | 109.4oz | 757mm | 29.80" | P | |
| M1675-PK | Pink | 2073.0N | 466.0lbf | 3.8s | 5223.0g | 184.2oz | 3159.0g | 111.4oz | 757mm | 29.80" | P | |
| M1810-RL | Red Lightning | 2085.0N | 468.7lbf | 3.6s | 5416.0g | 191.0oz | 3297.0g | 116.3oz | 757mm | 29.80" | P | |
| M3100-WT | White Thunder | 3665.5N | 824.0lbf | 2.0s | 5018.0g | 177.0oz | 2950.0g | 104.1oz | 757mm | 29.80" | P | |

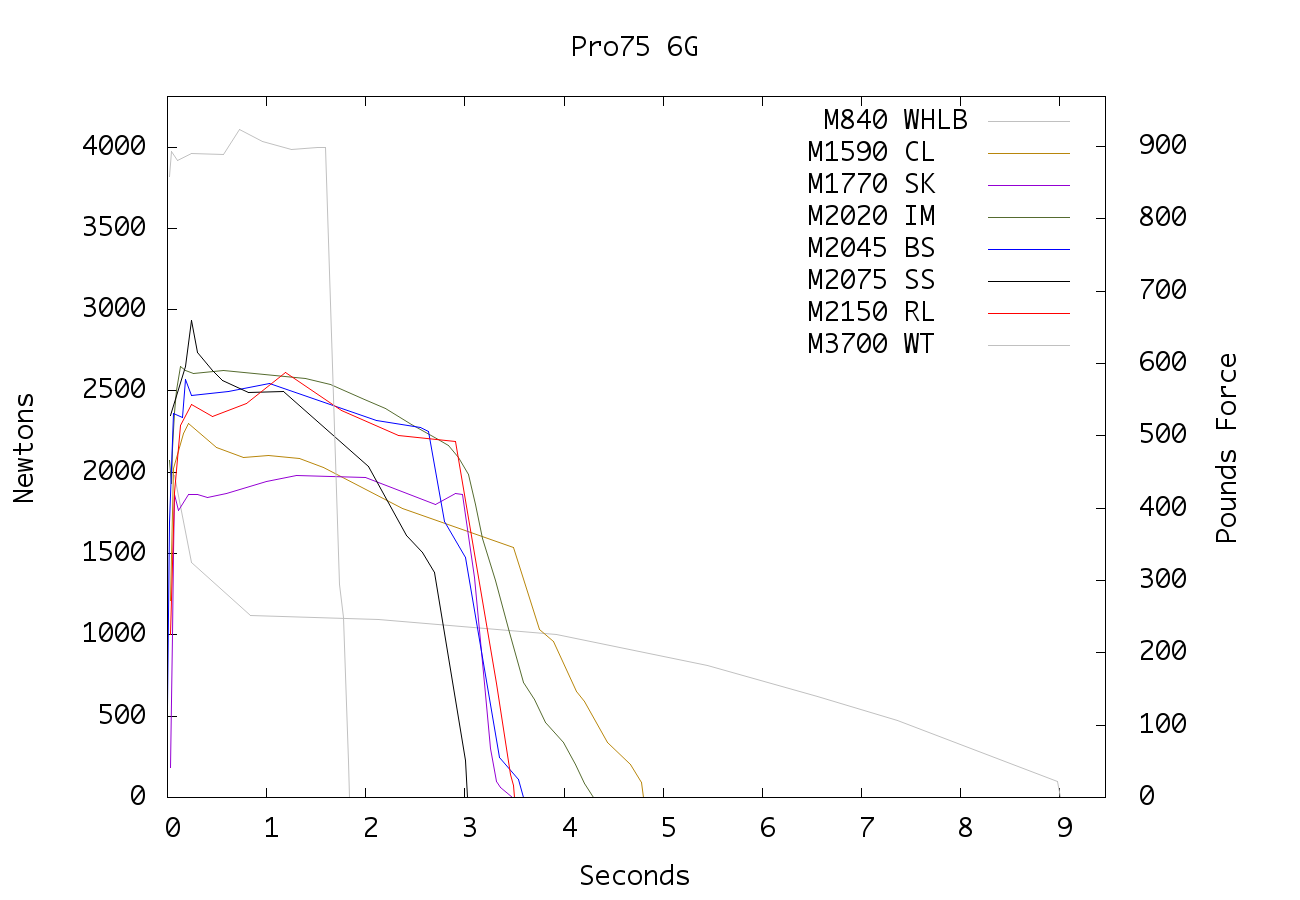

| Pro75 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| M840-WHLB | White Longburn | 1980.0N | 445.1lbf | 9.0s | 6954.0g | 245.3oz | 4436.0g | 156.5oz | 879mm | 34.61" | P | |
| M1590-CL | Classic | 2302.9N | 517.7lbf | 4.8s | 5223.0g | 184.2oz | 3159.0g | 111.4oz | 893mm | 35.16" | P | |
| M1770-SK | Skidmark | 1982.0N | 445.6lbf | 3.5s | 6157.8g | 217.2oz | 3520.0g | 124.2oz | 937mm | 36.89" | P | |
| M2020-IM | Imax | 2649.4N | 595.6lbf | 4.3s | 7031.8g | 248.0oz | 4349.0g | 153.4oz | 893mm | 35.16" | P | |
| M2045-BS | Blue Streak | 2570.1N | 577.8lbf | 3.6s | 6071.0g | 214.1oz | 3739.0g | 131.9oz | 893mm | 35.16" | P | |
| M2075-SS | Smoky Sam | 2931.5N | 659.0lbf | 3.0s | 7191.3g | 253.7oz | 4593.1g | 162.0oz | 893mm | 35.16" | P | |
| M2150-RL | Red Lightning | 2610.8N | 586.9lbf | 3.5s | 6324.0g | 223.1oz | 3969.0g | 140.0oz | 893mm | 35.16" | P | |
| M3700-WT | White Thunder | 4105.5N | 922.9lbf | 1.8s | 5778.5g | 203.8oz | 3106.5g | 109.6oz | 803mm | 31.61" | P | |

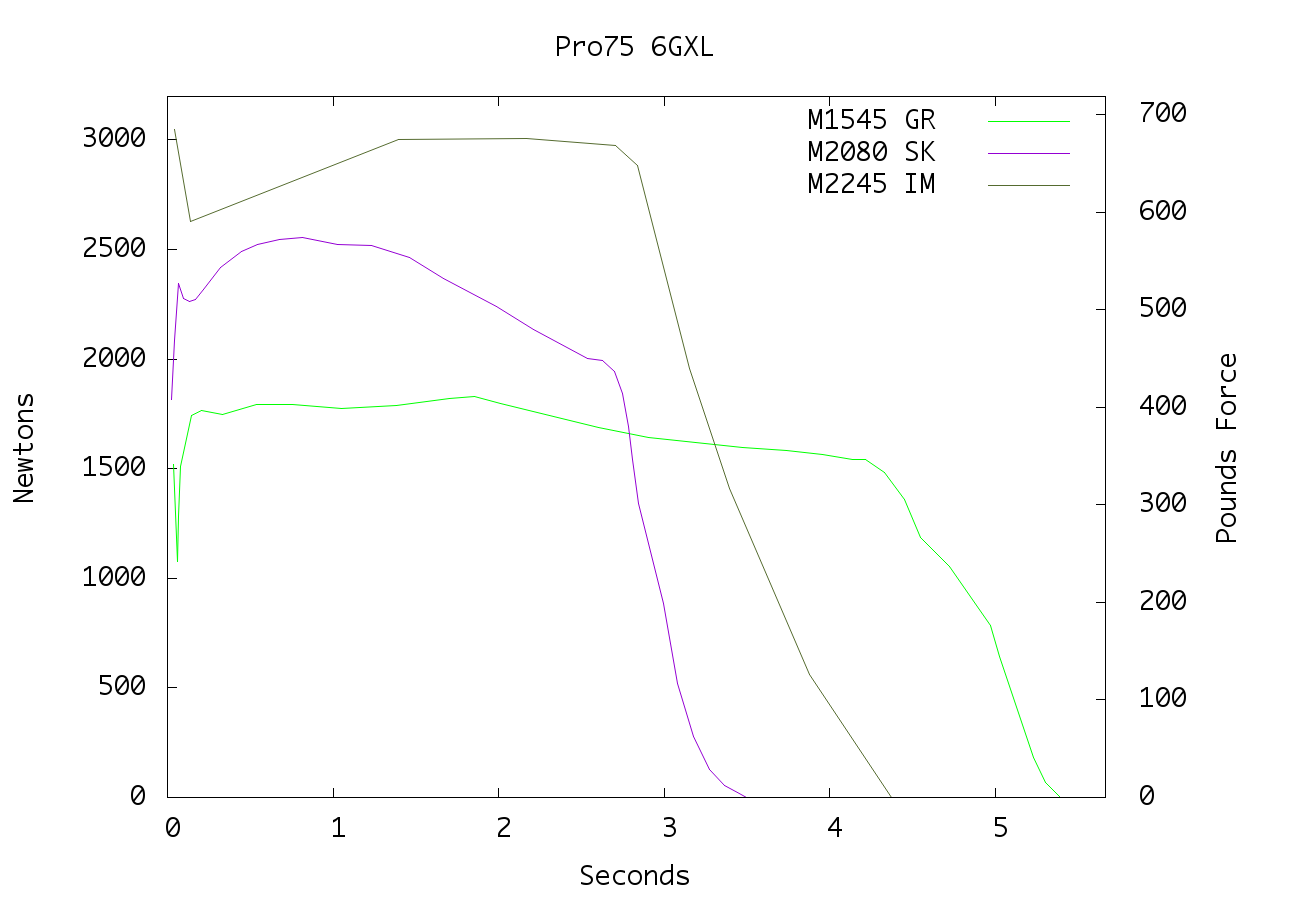

| Pro75 6GXL | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| M1545-GR | Green | 1828.5N | 411.0lbf | 5.4s | 7878.3g | 277.9oz | 4835.0g | 170.5oz | 1025mm | 40.35" | P | |
| M2080-SK | Skidmark | 2554.6N | 574.3lbf | 3.5s | 7039.5g | 248.3oz | 4107.0g | 144.9oz | 1025mm | 40.35" | P | |
| M2245-IM | Imax | 3045.7N | 684.7lbf | 4.4s | 8182.0g | 288.6oz | 5309.0g | 187.3oz | 1025mm | 40.35" | P | |
| Pro98 | ||||||||||||

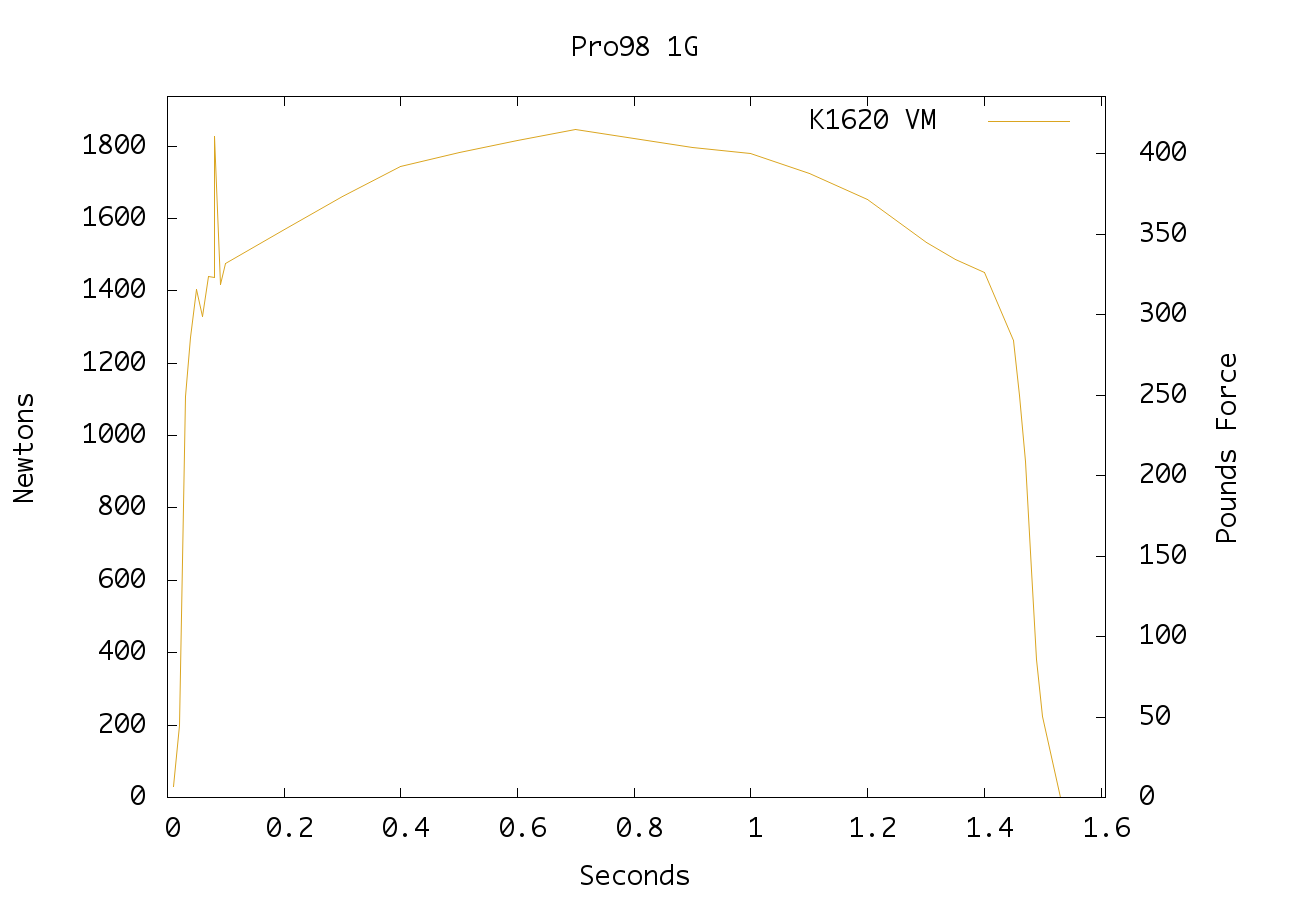

| Pro98 1G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| K1620-VM | Vmax | 1844.8N | 414.7lbf | 1.5s | 3077.0g | 108.5oz | 1212.0g | 42.8oz | 240mm | 9.45" | P | |

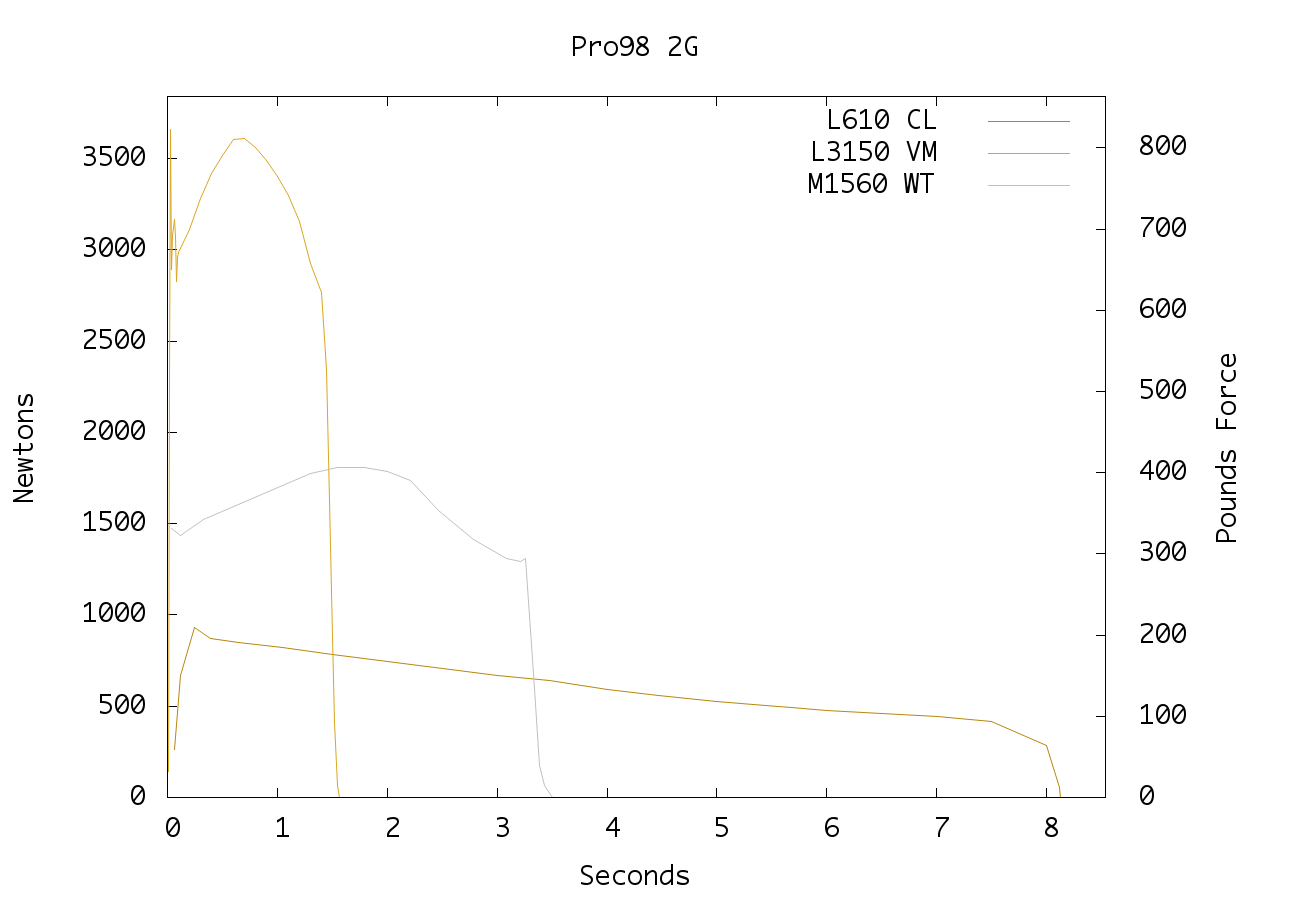

| Pro98 2G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| L610-CL | Classic | 929.7N | 209.0lbf | 8.1s | 4975.0g | 175.5oz | 2415.0g | 85.2oz | 394mm | 15.51" | P | |
| L3150-VM | Vmax | 3656.9N | 822.1lbf | 1.6s | 4807.8g | 169.6oz | 2376.0g | 83.8oz | 394mm | 15.51" | P | |
| M1560-WT | White Thunder | 1808.0N | 406.4lbf | 3.5s | 4977.0g | 175.6oz | 2583.0g | 91.1oz | 394mm | 15.51" | P | |

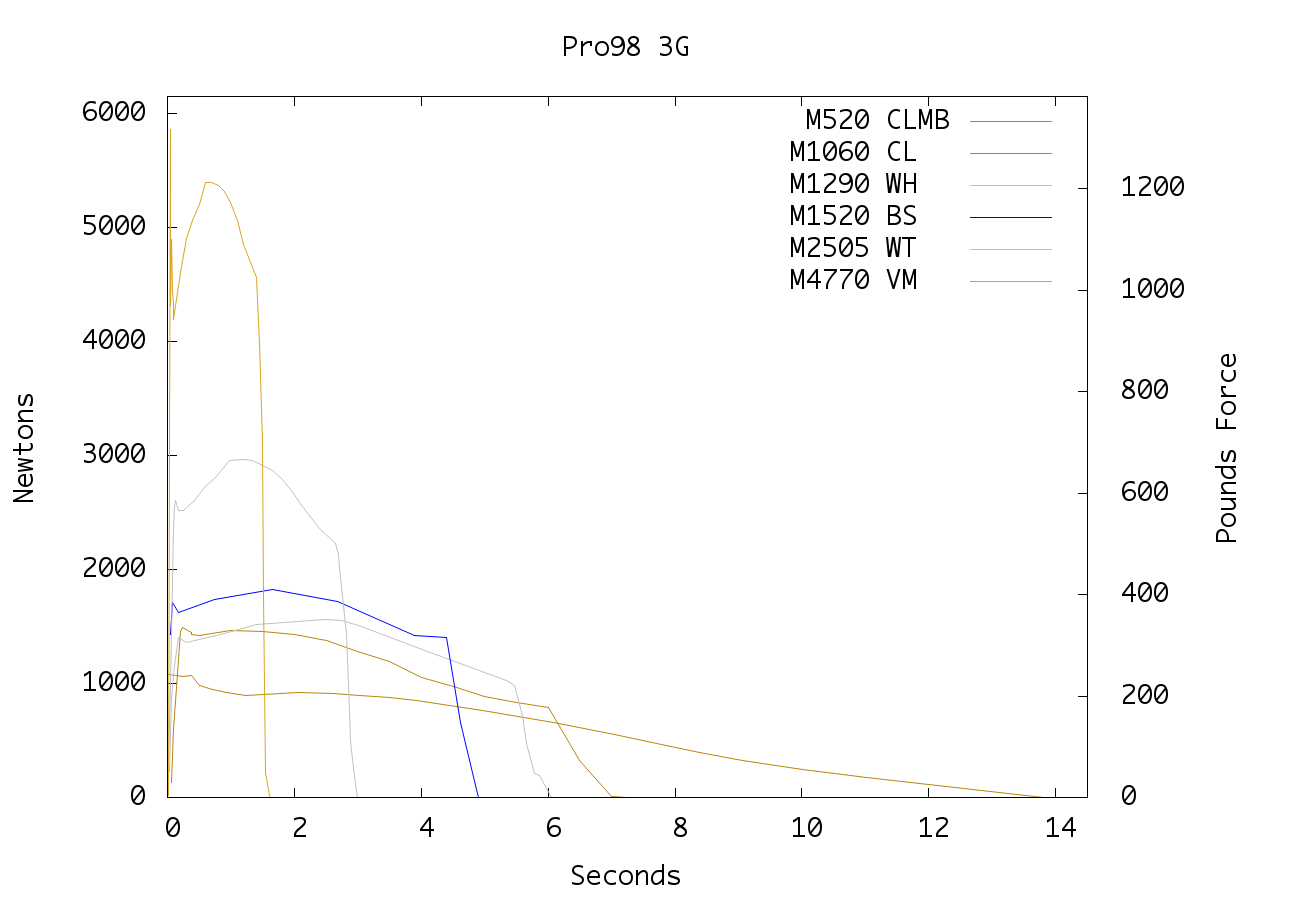

| Pro98 3G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| M520-CLMB | Moonburner | 1077.0N | 242.1lbf | 13.8s | 6693.0g | 236.1oz | 3658.0g | 129.0oz | 548mm | 21.57" | P | |
| M1060-CL | Classic | 1494.0N | 335.9lbf | 7.2s | 6673.0g | 235.4oz | 3622.0g | 127.8oz | 548mm | 21.57" | P | |
| M1290-WH | White | 1559.0N | 350.5lbf | 6.0s | 7411.0g | 261.4oz | 4421.0g | 155.9oz | 548mm | 21.57" | P | |
| M1520-BS | Blue Streak | 1827.1N | 410.7lbf | 4.9s | 6718.0g | 237.0oz | 3737.0g | 131.8oz | 548mm | 21.57" | P | |
| M2505-WT | White Thunder | 2963.9N | 666.3lbf | 3.0s | 6250.0g | 220.5oz | 3339.0g | 117.8oz | 548mm | 21.57" | P | |
| M4770-VM | Vmax | 5854.3N | 1316.1lbf | 1.6s | 6503.0g | 229.4oz | 3585.0g | 126.5oz | 548mm | 21.57" | P | |

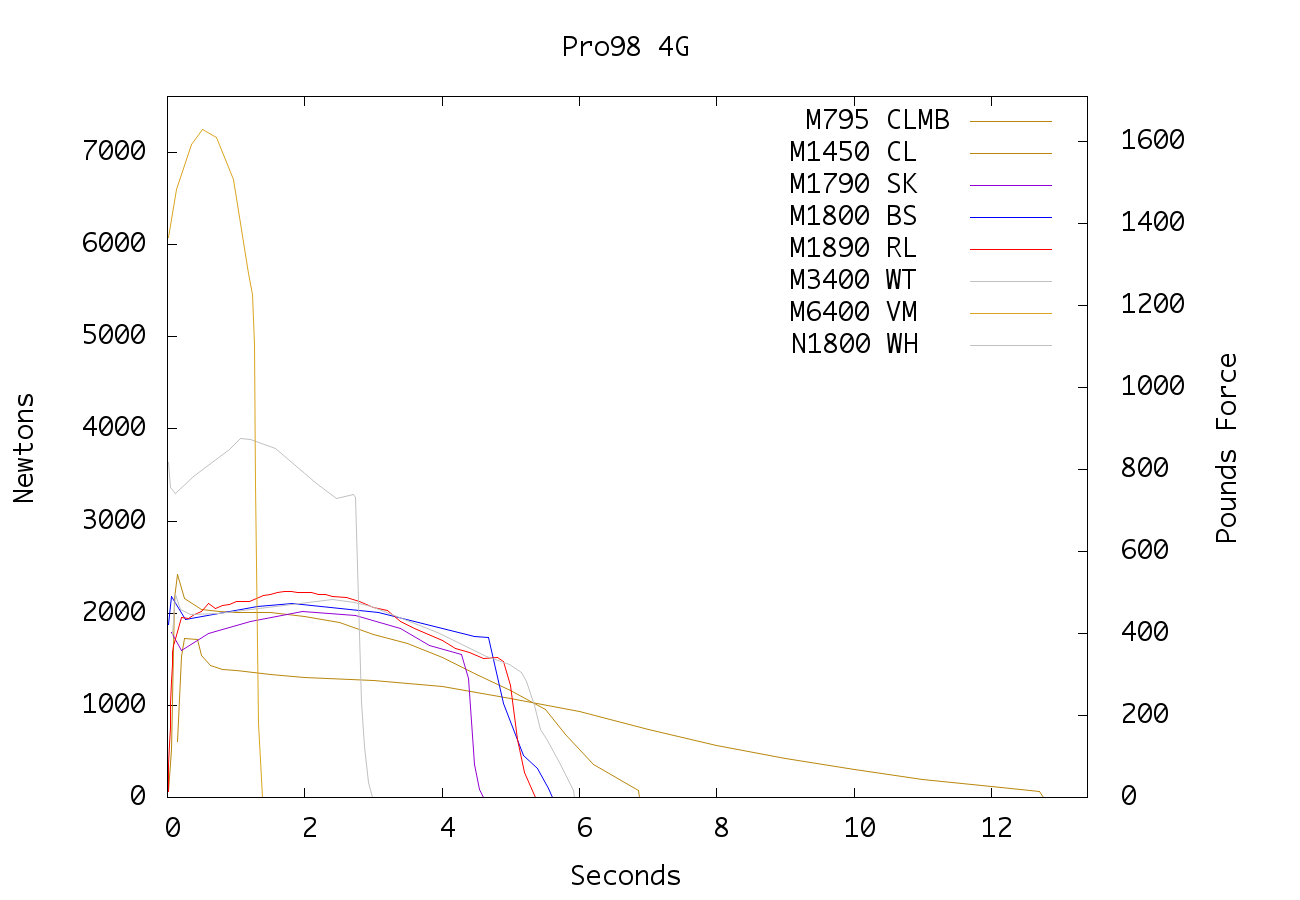

| Pro98 4G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| M795-CLMB | Moonburner | 1722.0N | 387.1lbf | 12.8s | 8492.0g | 299.5oz | 4892.0g | 172.6oz | 702mm | 27.64" | P | |
| M1450-CL | Classic | 2416.0N | 543.1lbf | 6.9s | 8578.0g | 302.6oz | 4830.0g | 170.4oz | 702mm | 27.64" | P | |
| M1790-SK | Skidmark | 2021.9N | 454.5lbf | 4.6s | 8298.0g | 292.7oz | 4817.0g | 169.9oz | 702mm | 27.64" | P | |
| M1800-BS | Blue Streak | 2177.2N | 489.4lbf | 5.6s | 8342.0g | 294.3oz | 4959.0g | 174.9oz | 702mm | 27.64" | P | |
| M1890-RL | Red Lightning | 2240.1N | 503.6lbf | 5.4s | 8823.0g | 311.2oz | 5316.0g | 187.5oz | 702mm | 27.64" | P | |
| M3400-WT | White Thunder | 3897.6N | 876.2lbf | 3.0s | 8108.0g | 286.0oz | 4766.0g | 168.1oz | 702mm | 27.64" | P | |
| M6400-VM | Vmax | 7244.6N | 1628.6lbf | 1.4s | 7919.0g | 279.3oz | 4308.0g | 152.0oz | 702mm | 27.64" | P | |
| N1800-WH | White | 2205.6N | 495.8lbf | 5.9s | 9180.0g | 323.8oz | 4842.0g | 170.8oz | 702mm | 27.64" | P | |

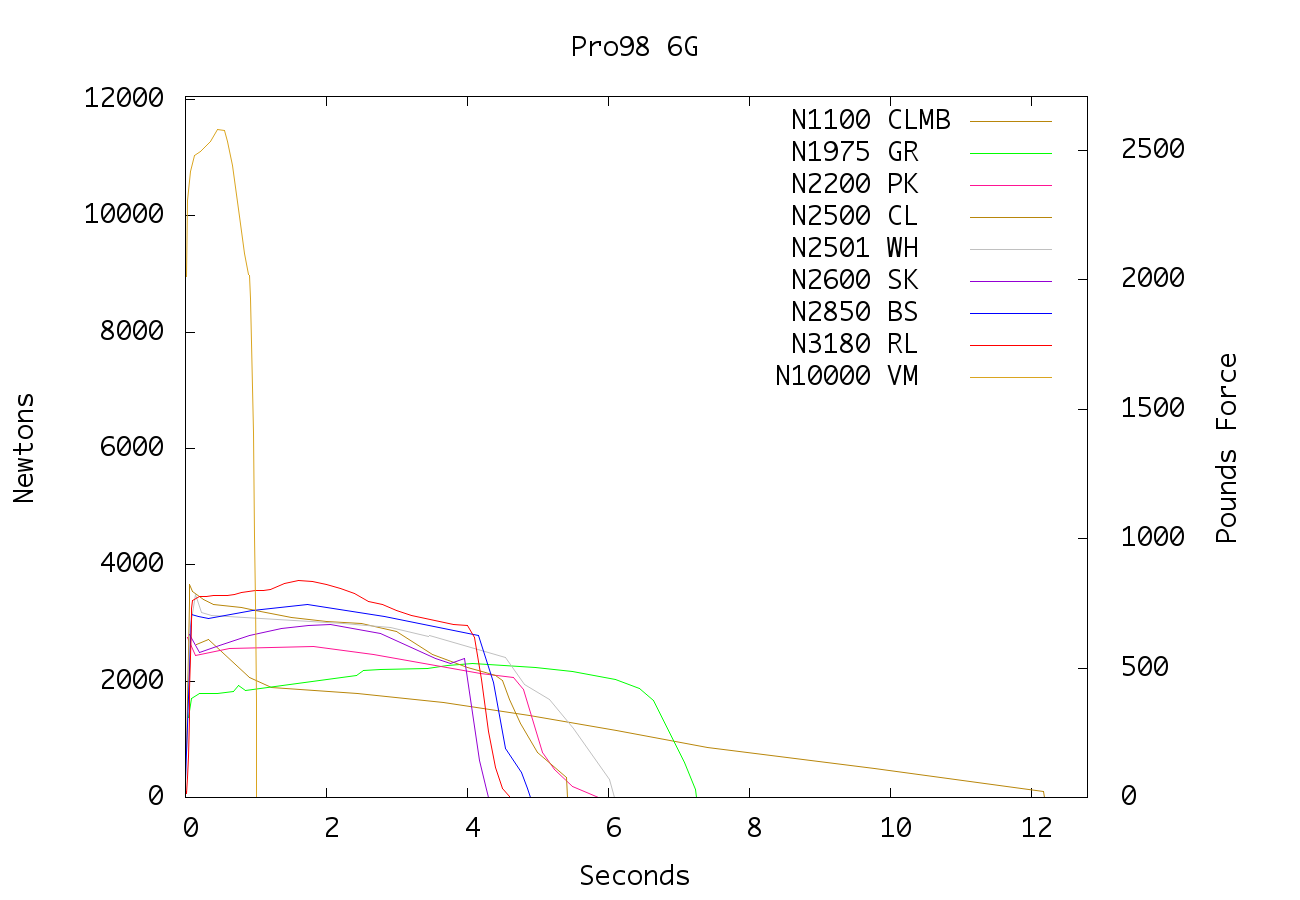

| Pro98 6G | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| N1100-CLMB | Moonburner | 2708.0N | 608.8lbf | 12.2s | 11644.0g | 410.7oz | 6790.0g | 239.5oz | 1010mm | 39.76" | P | |
| N1975-GR | Green | 2299.0N | 516.8lbf | 7.3s | 13247.5g | 467.3oz | 8584.0g | 302.8oz | 1010mm | 39.76" | P | |
| N2200-PK | Pink | 2755.8N | 619.5lbf | 5.9s | 11356.0g | 400.6oz | 6308.0g | 222.5oz | 1010mm | 39.76" | P | |
| N2500-CL | Classic | 3657.8N | 822.3lbf | 5.4s | 11668.0g | 411.6oz | 6778.0g | 239.1oz | 1010mm | 39.76" | P | |
| N2501-WH | White | 3488.4N | 784.2lbf | 6.1s | 13308.0g | 469.4oz | 8704.0g | 307.0oz | 1010mm | 39.76" | P | |
| N2600-SK | Skidmark | 2972.1N | 668.1lbf | 4.3s | 11482.0g | 405.0oz | 6770.0g | 238.8oz | 1010mm | 39.76" | P | |
| N2850-BS | Blue Streak | 3312.6N | 744.7lbf | 4.9s | 11688.0g | 412.3oz | 6965.0g | 245.7oz | 1010mm | 39.76" | P | |
| N3180-RL | Red Lightning | 3738.0N | 840.3lbf | 4.6s | 12198.0g | 430.3oz | 7544.0g | 266.1oz | 1010mm | 39.76" | P | |
| N10000-VM | Vmax | 11475.8N | 2579.8lbf | 1.0s | 9918.5g | 349.9oz | 5335.0g | 188.2oz | 1010mm | 39.76" | P | |

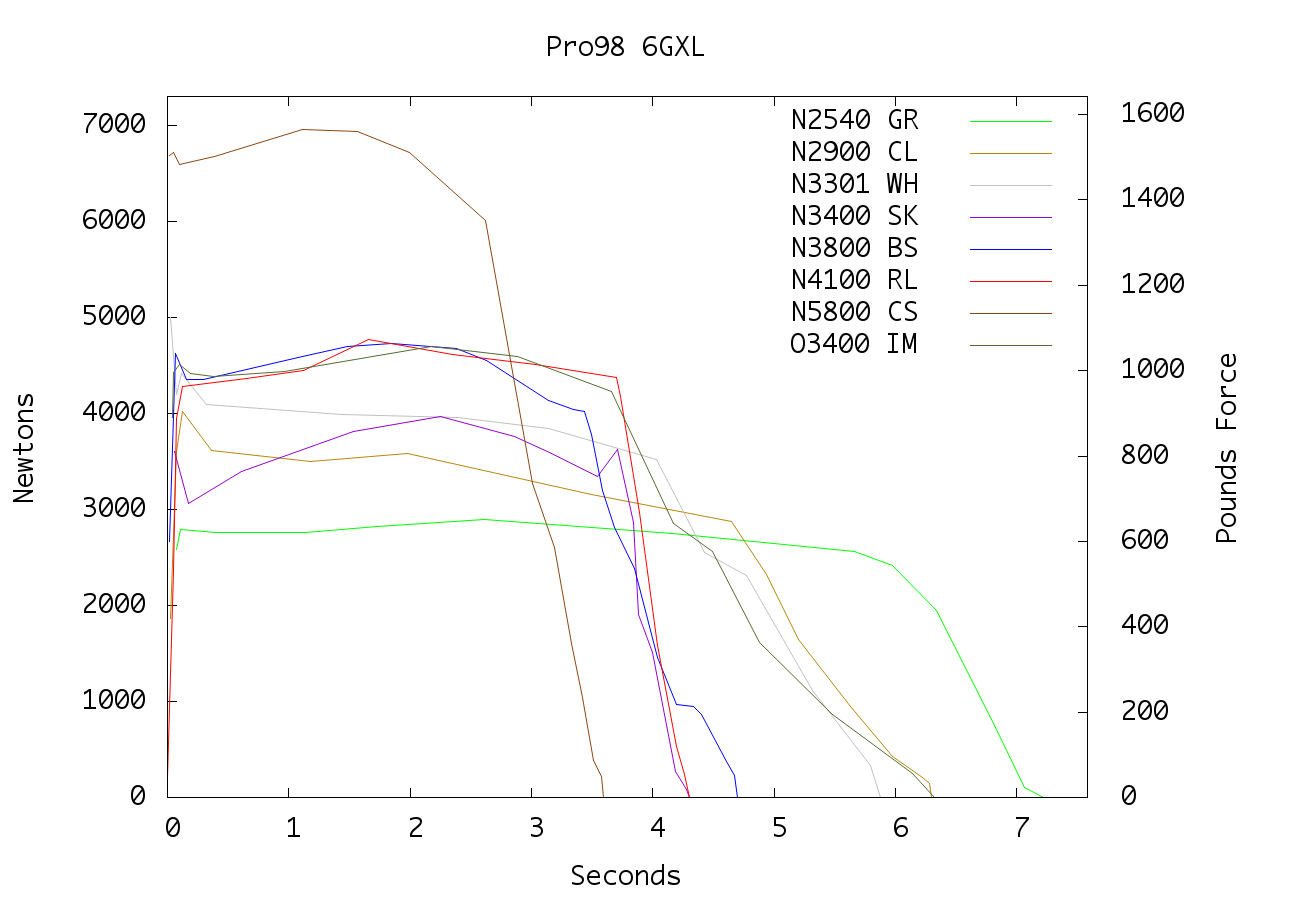

| Pro98 6GXL | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| N2540-GR | Green | 2895.0N | 650.8lbf | 7.2s | 16280.5g | 574.3oz | 10704.2g | 377.6oz | 1239mm | 48.78" | P | |
| N2900-CL | Classic | 4022.1N | 904.2lbf | 6.3s | 14166.0g | 499.7oz | 8788.0g | 310.0oz | 1239mm | 48.78" | P | |
| N3301-WH | White | 5000.0N | 1124.0lbf | 5.9s | 16525.0g | 582.9oz | 10919.0g | 385.2oz | 1239mm | 48.78" | P | |
| N3400-SK | Skidmark | 3973.5N | 893.2lbf | 4.3s | 13972.0g | 492.8oz | 8471.0g | 298.8oz | 1239mm | 48.78" | P | |
| N3800-BS | Blue Streak | 4729.3N | 1063.1lbf | 4.7s | 14261.0g | 503.0oz | 8710.0g | 307.2oz | 1239mm | 48.78" | P | |
| N4100-RL | Red Lightning | 4772.8N | 1072.9lbf | 4.3s | 14748.0g | 520.2oz | 9380.0g | 330.9oz | 1293mm | 50.91" | P | |
| N5800-CS | C-Star | 6957.3N | 1564.0lbf | 3.6s | 14826.0g | 523.0oz | 9425.0g | 332.5oz | 1239mm | 48.78" | P | |
| O3400-IM | Imax | 4698.6N | 1056.2lbf | 6.3s | 16842.0g | 594.1oz | 11272.0g | 397.6oz | 1239mm | 48.78" | P | |
| Pro150 | ||||||||||||

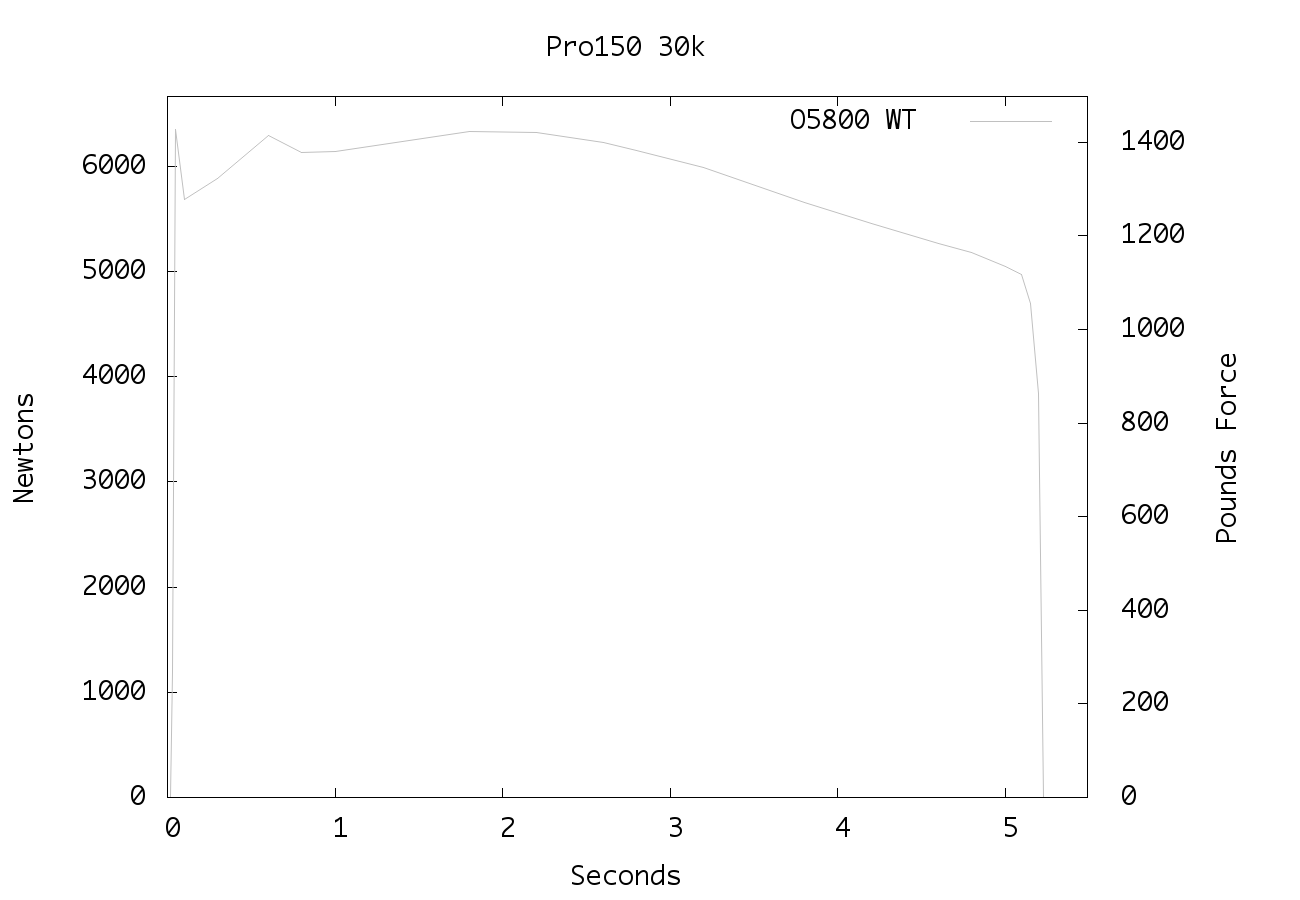

| Pro150 30k | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| O5800-WT | White Thunder | 6345.3N | 1426.4lbf | 5.2s | 26368.0g | 930.1oz | 14864.0g | 524.3oz | 754mm | 29.69" | P | |

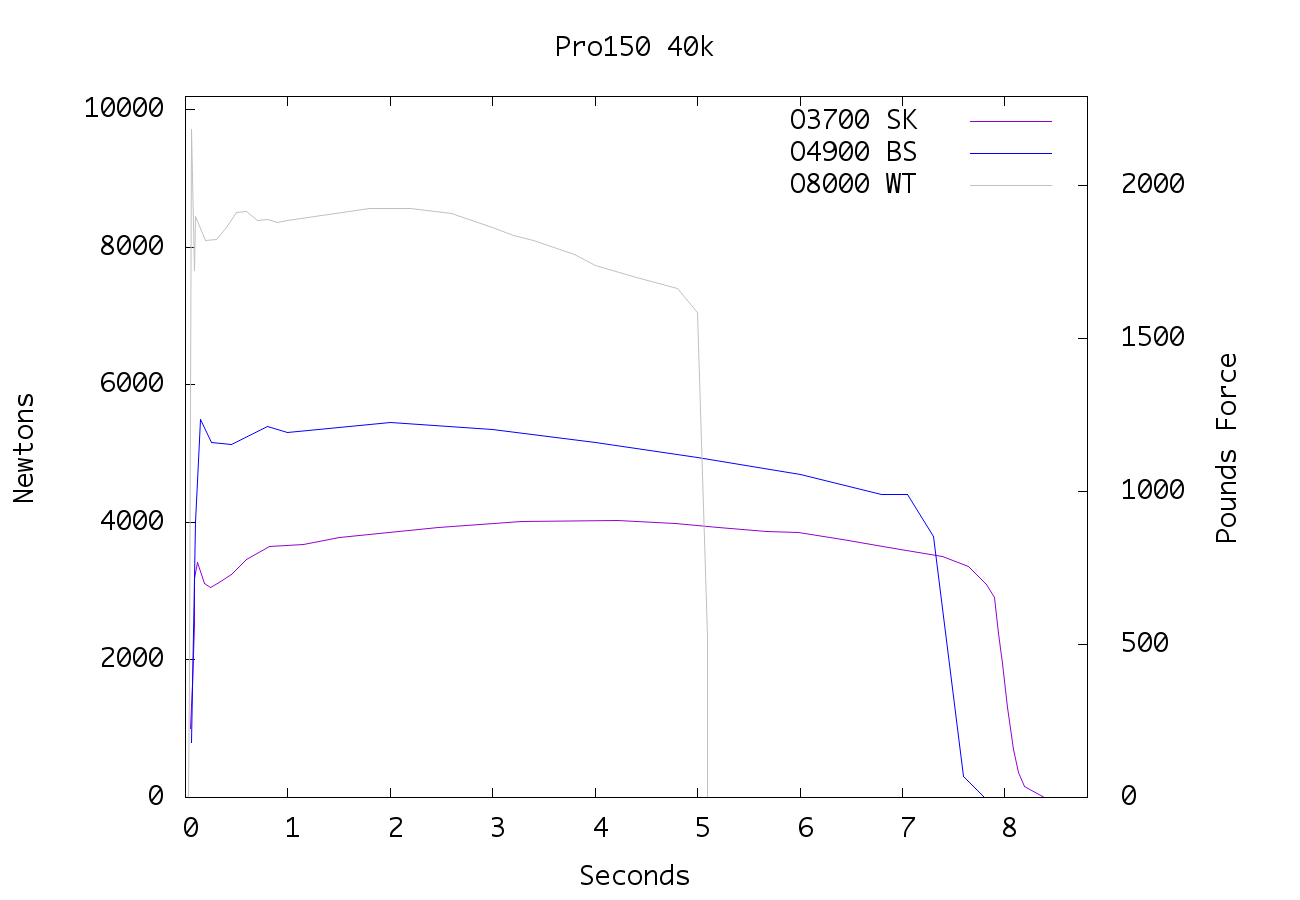

| Pro150 40k | Peak Thrust | Duration | Initial Mass | Prop Weight | Length | Delay | |
|||||
| O3700-SK | Skidmark | 4030.3N | 906.0lbf | 8.4s | 31350.5g | 1105.9oz | 17157.0g | 605.2oz | 957mm | 37.68" | P | |
| O4900-BS | Blue Streak | 5500.0N | 1236.4lbf | 7.8s | 32648.0g | 1151.6oz | 18898.0g | 666.6oz | 957mm | 37.68" | P | |
| O8000-WT | White Thunder | 9705.7N | 2181.8lbf | 5.1s | 32672.0g | 1152.5oz | 19194.0g | 677.0oz | 957mm | 37.68" | P | |
